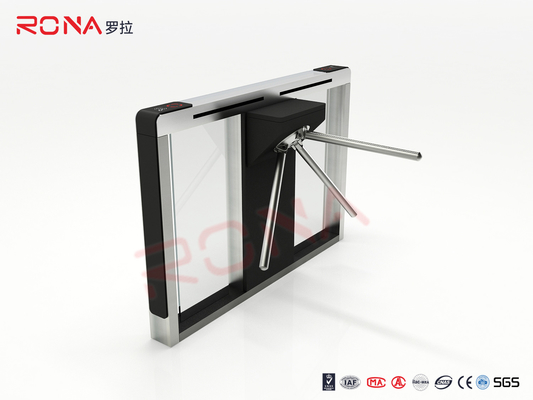

Pedestrian Intelligent Security Tripod Turnstile Gate Access Control With LED Indicator

Product Details:

Place of Origin:	China
Brand Name:	RONA
Certification:	CE/ISO9001
Model Number:	RNCF T138

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	carton and wooden packing
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T
Supply Ability:	2000 unit per month

Contact Now

Detailed Product Description

Product Name:	Tripod Turnstile	Warranty:	One Year
Passage Width:	550mm	Size:	1400MM300MM980MM
Main Board Type:	V2.63	Motor Type:	DC24V Brushless Motor
Normal Running Life:	More Than 5 Million Times	Housing Material:	304 Stailess Steel
High Light:	LED Indicator Vertical Tripod Turnstile , Pedestrian Tripod Turnstile Gate , Intelligent Tripod Turnstile Gate

Pedestrian Intelligent Security Tripod Turnstile Access Control with LED Indicator of CE Approved

Functions&Features

Barrier open/closed, free accessing, forbidden mode are selectable.
Bidirectional (entering/exiting) lane
LED indicates the entrance/exit and passing status.
Fire alarm passing: when the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
Valid passing duration settings: system will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
Easy integration of any third-party software management system via ISAPI procotol.
With key buttons to configure turnstile's functions and parameters offline.

Dimension

Pedestrian Intelligent Security Tripod Turnstile Gate Access Control With LED Indicator 0

Technical Parameters

Item	Full-auto	Semi-auto
Size:	1400MM300MM980MM
Bar length :	550(mm)
Bar Driving model :	Digital
Rolling direction :	Bi-direction,unidirectional(optional)
Lamp indication :	Passing way indication
Mechanism core :	Magnetic valve
Extensive function :	Counter ,LED digital display
Work condition :	Indoor/outdoor
Temperature:	-20℃～70℃
Anti-panic :	Drop when power off, raise automatically when power on	Drop when power off, raise manually when power on
Card-reading window :	Standard installation holder or customized
Opening time :	0.2s
Passing speed :	20-30persons /min
Working power:	80W	50W
Working voltage:	AC220±10%V 50±10%HZ
Input interface :	Relay, dry contact signal or 12V pulse signal, pulse width＞100ms,drive current＞10mA
Communication port :	RS485 ,connected with computer, remote control
