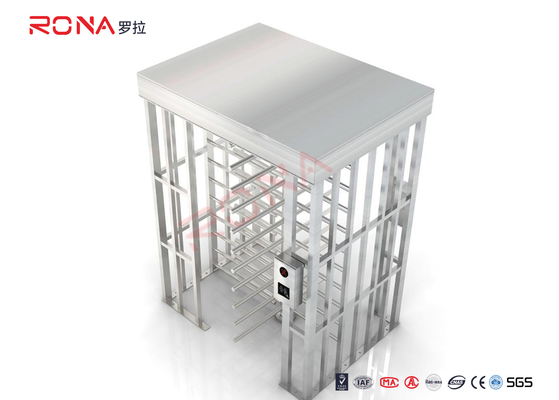

Bus Station Full Height Turnstiles Remote Control With Solenoid Valve Motor

Bus Station Full Height Turnstiles Remote Control With Solenoid Valve Motor

Bus Station Full Height Turnstiles

Solenoid Valve Motor Full Height Turnstiles

Remote Control Full Height Turnstiles

Place of Origin:


Brand Name:




Model Number:

RNCF 21238FU

Contact Us
Request A Quote
Product Details
Product Name:
Full Height Turnstile
Motor Type:
Solenoid Value
Normal Running Life:
8 Million Times
Pass Speed:
25-30 Person/nin
Passage Width:
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 unit per month
Product Description

Bus Station Full Height Turnstiles Coin Collector Remote Control Boom Barrier Gate With 304# stainless steel


Brief Introduction

  • This full height turnstile gate is designed to control pedestrians entering and exiting, suitable for indoor and outdoor use.
  • The full height turnstile gate can be used indoors and outdoors.
  • This full height turnstile gate an affordable price is widely used for train stations, school libraries, government facilities, amusement parks, prisons, football stadiums, apartments, museums, and factory, etc.
  • Using the standard electrical interface, compatible with ID/IC card, fingerprint, face recognition, an infrared detector, temperature controller, Barcode/QR code, phone app, ESD system, visitor system, etc.
  • Full height turnstile gate is integrated with a mechanism, electric and micro-controller, and various kinds of identification technologies, compatible with IC, ID, bar code, fingerprint reader, and so on to provide intelligent control and management to flow control.



  • Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
  • Available with 3-arm, 120 degree spacing (default) or 4-arm, 90 degree spacing (optional).
  • Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.
  • The running status of device can be set up through pressing the built-in small keyboard of the main control board.
  • When power off, the center rotor will be set free model (default) or be locked model (optional).
  • Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
  • Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).
  • Remote control and management function: Through the management computer to realize remote control and management.



Framework: 304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)
Thickness of ply: 1.7mm
Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
Shell’ size: Φ1500mm*H2200mm
Arm’s length: 600mm
Arm diameter: 38mm
The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Operation voltage: AC220V±10% 50Hz±10%
Time of opening / closing: 0.2s
Time to work after power on: 3s
Reset time after breaking down: 10s
Transit speed: 30 persons/minute
MTBF: >5 million
Communications Interface: RS232 / RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Relative humidity: ≤90% Non-condensing
Working Environment: -10℃ ~ 70℃, Indoor / Outdoor
Certificates: CE certified





Bus Station Full Height Turnstiles Remote Control With Solenoid Valve Motor 0
