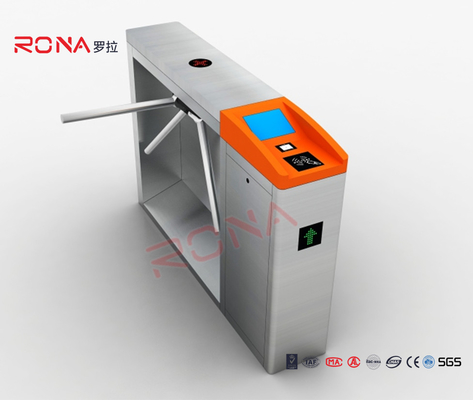

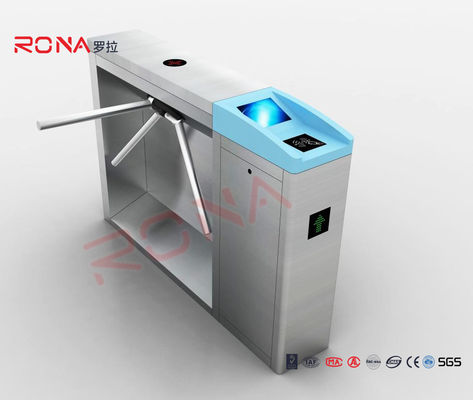

550mm Width Access Control Tripod Turnstile Electronic Security Systems Gate

550mm Width Access Control Tripod Turnstile Electronic Security Systems Gate

550mm width Tripod Turnstile

Security Systems Tripod Turnstile

Access Control Tripod Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Motor Type:
Solenoid Value
Main Board Type:
Normal Running Life:
8 Million Times
Pass Speed:
25-30 Person/nin
Housing Materal:
304 Stainless Steel&Stoving Varnish
Passage Width:
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 unit per month
Product Description

Access Control Tripod Turnstile Security Systems Gate Electronic With Various Clolor Of Swipe Area


Brief Introduction

The tripod turnstile, also known as the three-stick gate, is a kind of passage gate and an intelligent control terminal device for the entrance and exit of the passageway for people. Dedicated to gates that require security checks or control for personnel exits and entrances, such as canteens, hotels, office buildings, museums, gymnasiums, clubs, subways, stations, docks, tourist attractions and other places.




  • The full rainproof box made of alloy aluminum or stainless steel, compared with the pedestrian passage equipment such as swing gate and flap gate with pass function, the tripod gate is more inexpensive and high in quality.
  • It has a personalized installation interface (such as card reader, indicator light installation, etc.), which ensures that the system integrator's control gate equipment is simple and convenient to install.
  • The movement of the tripod turnstile has an automatic adjustment hydraulic shock absorber. When the tripod turnstile is used for operation, the sound is very small, there is no impact, and the brake lever automatically decelerates and returns to the center.
  • Programmable turnstile control, one or two direction control (set by user).
  • The base is fixed with expansion bolts.




Item Full-auto Semi-auto
Size: L1450*W280*H1000 mm
Bar length : 510(mm)
Bar Driving model : Digital
Rolling direction : Bi-direction,unidirectional(optional)
Lamp indication : Passing way indication
Mechanism core : Magnetic valve
Extensive function : Counter ,LED digital display
Work condition : Indoor/outdoor
Temperature: -20℃~70℃
Anti-panic : Drop when power off, raise automatically when power on Drop when power off, raise manually when power on
Card-reading window : Standard installation holder or customized
Opening time : 0.2s
Passing speed : 20-30persons /min
Working power: 80W 50W
Working voltage: AC220±10%V 50±10%HZ
Input interface : Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA
Communication port : RS485 ,connected with computer, remote control




Product Functions

  • The whole system runs smoothly with low noise;
  • It has the function of dropping the pole when the power is off, and automatically ascending the pole when the power is on;
  • With device and circuit self-test function, easy to maintain;
  • With time protection function;
  • With traffic indication function;
  • With self-protection, automatic reset function
