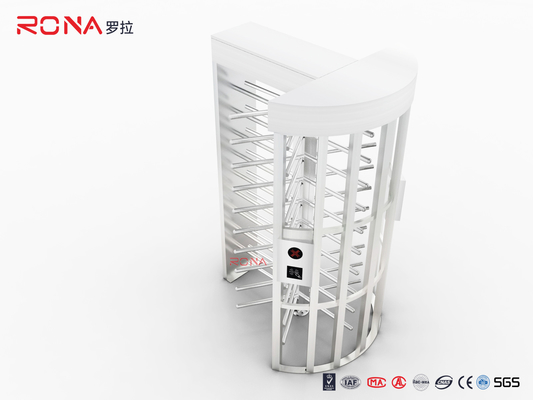

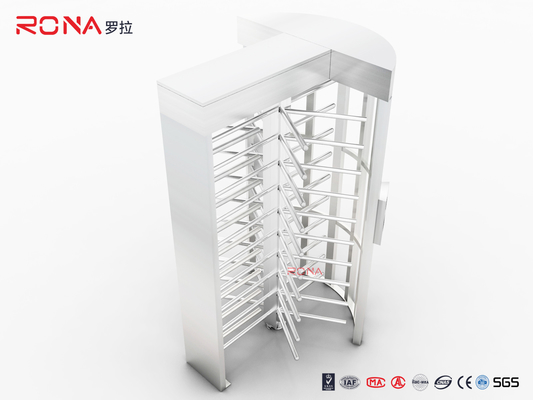

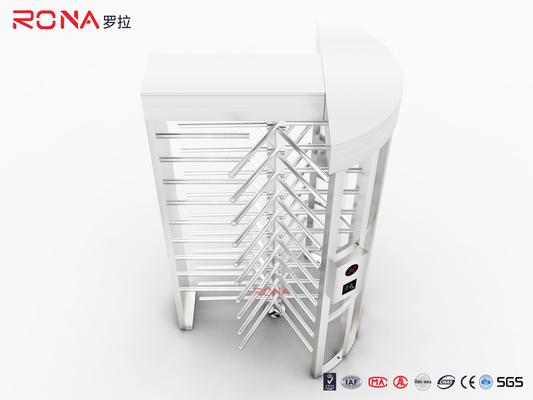

Electrical Interface Full Height Turnstile With ID/IC Card Fingerprint Face Recognition

Electrical Interface Full Height Turnstile With ID/IC Card Fingerprint Face Recognition

Electrical Interface Full Height Turnstile

Face Recognition Full Height Turnstile

Fingerprint Full Height Turnstile

Place of Origin:


Brand Name:




Model Number:

RNCF 21215

Contact Us
Request A Quote
Product Details
Lane Width::
650 Mm (can Be Customized)
Housing Material::
304 Stailess Steel
Passing Speed::
30 Person/min
Power Supply::
Motor Type::
Solenoid Valve
Gate Open Input::
Dry Contact
Logic Voltage::
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Wooden cases packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 unit per month
Product Description

Standard Electrical Interface Compatible Full Height Turnstile With ID/IC Card Fingerprint Face Recognition



Brief Intruduction

Full height turnstile is an upgraded product of traditional pedestrian turnstile gates with the best security performance, which is much higher and wider than an ordinary turnstile gate and has obvious security advantages. Full height turnstile can form a closed passage space, and personnel pass orderly by swiping cards and other methods. Full height turnstiles can be unattended and have high application value in some places with strict security measures. It is composed of chassis and 3 or 4 rows of rotating rods. Full height turnstiles are developed on the basis of a tripod turnstile gate. It can be dissuaded or released by rotating 120° or 90° each time.


In some specific places, such as some special passages in the station, or places with strict security requirements, such as prisons or gymnasiums, general turnstile gates can not meet the security requirements. At this time, full height pedestrian turnstiles will be used for access control management, because full height pedestrian turnstiles are the most durable, robust, and high-level security access control equipment, it is suitable for unattended places with high-security requirements, as well as some outdoor places with harsh environments.




  • Often used for high-security access control solutions.
  • Made of 304 stainless steel which is anti-rust, robust, and rigid.
  • Ideal for both indoor and outdoor settings.
  • can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint, and Biometric device).
  • Open automatically when the power is off, It is very safe, to meet fire-control passage requirements.
  • With the anti-reverse function, stop reversed direction.
  • The mechanism is equipped with an automatically regulated hydraulic buffer device. No noise and impact when running.
  • Self-restore function, when power is on, the system will restart automatically.
  • Reliability of the mechanism: 5 million, no-fault
  • Dual-bearing devices, keep the gate in balance when there is an external force.
  • Single directional or Bi-directional is optional.
  • With LED indicator light.
  • Full height security turnstiles can be customized to meet the different requirements for different places.
  • Through the control board’s built-in small keyboard, with programmable devices to manage operating status.




Framework: 304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)
Thickness of ply: 1.7mm
Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
Arm’s length: 600mm
Arm diameter: 38mm
The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
Operation voltage: AC220V±10% 50Hz±10%
Time of opening / closing: 0.2s
Time to work after power on: 3s
Reset time after breaking down: 10s
Transit speed: 30 persons/minute
MTBF: >5 million
Communications Interface: RS232 / RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Relative humidity: ≤90% Non-condensing
Working Environment: -10℃ ~ 70℃, Indoor / Outdoor




Access control system


Electrical Interface Full Height Turnstile With ID/IC Card Fingerprint Face Recognition 0



Project cases

Electrical Interface Full Height Turnstile With ID/IC Card Fingerprint Face Recognition 1
