| Brand Name: | RONA |
| Model Number: | RNCF20238W |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |

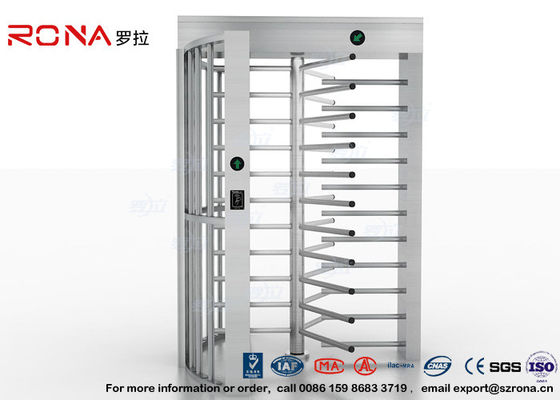

High Security Full Height Turnstile Access Control Stainless Steel
Features and functions:
> The gate system can be easily integrated with third-party devices, such as biometric card readers, consumer systems, ESD systems and access control systems, etc., and the rapid identification technology can accurately and efficiently identify magnetic cards, barcode cards, ID/IC cards, etc.
> Operation mode: both directions can be set as controlled mode or free mode, both or one direction can be controlled by switch button or access controller.
> Available in 3-arm, 120-degree pitch (default) or 4-arm, 90-degree pitch (optional).
> Anti-backup function: Prevents reverse rotation once the mechanism moves 60 degrees from its original position.
> When powered off, the center rotor will be set to free mode (default) or locked mode (optional).
>Emergency escape function: No matter whether it is powered on or not, as long as the emergency button is pressed, the center rotor will be released automatically, which can be controlled remotely.
> Auto-reset function: If the passage is not passed within the preset time, the passage signal will be cancelled. The standard default is 10 seconds (the time can be adjusted by changing the parameters of the main control board).
> Remote control and management function: realize remote control and management through the management computer.
TECHNICAL SPECIFICATIONS:
| Framework: | 304# Stainless Steel (default), 201# or 316# Stainless Steel (optional) |
| Thickness of ply: | 1.7mm |
| Finish: | Brushed surface / Polished surface / Anti-Fingerprints surface |
| Shell’ size: |
L1630mm*W1500mm*H2310mm |
| Arm’s length: | 600mm |
| Arm diameter: | 38mm |
| The inductive card reader dimension: | equipped with the standard mounting brackets, or tailor. |
| Card Reader mounting: | Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card. |
| Operation voltage: | AC220V±10% 50Hz±10% |
| Time of opening / closing: | 0.2s |
| Time to work after power on: | 3s |
| Reset time after breaking down: | 10s |
| Transit speed: | 30 persons/minute |
| MTBF: | >5 million |
| Communications Interface: | RS232 / RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional) |
| Input interface: | relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
| Relative humidity: | ≤90% Non-condensing |
| Working Environment: | -10℃ ~ 50℃, Indoor / Outdoor |
| Certificates: | CE certified |
OPERATION MODELS:
The turnstile provides bi-directional access control. Each direction may be in one of three states:
> Free passage: all person are authorized to pass under all conditions
> Controlled access: each person must use a card reader before being authorized to pass
> Lane closed: no persons are authorized to pass, and security cards are ignored
EXHIBITION:
