|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Framework Material:||304# Stainless Steel||Arm Length:||500mm|
|Stretching Out Arm Length:||500mm||Passing Speed:||30 Persons/min|
|Passage Width:||550mm||Relative Humidity:||≤95% Not Condensed|
|Name:||Tripod Turnstile Gate||Normal Running Life:||>3million|
SS304 Tripod Turnstile Gate,
Bus Station Tripod Turnstile Gate,
SS304 tripod barrier gate

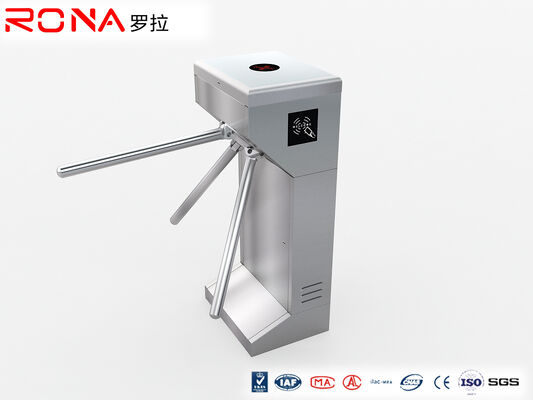

Stainless Steel 304 Tripod Turnstile Gate Standing Type For Bus Station
Features and functions:
1. The gate system can be easily integrated with third-party devices, such as biometric card readers, consumer systems, ESD systems, access control systems, etc.
2. Operation mode: Both directions can be set as controlled mode or free mode, and two or one direction can be controlled by switch button or access controller.
3. Multiple alarm function: When the arm is pushed illegally and forcibly, it will automatically trigger the alarm and set the arm lock (the duration of the alarm and lock can be adjusted by changing the parameters of the main control board).
4. Automatic reset function: If the pass is not passed within the preset time, the pass signal is canceled. The standard default is 10 seconds (the time can be adjusted by changing the parameters of the main control board).
5. With self-check and alarm function, easy to use.
6. A variety of working methods can be selected according to your requirements
7. Automatically open and provide unblocked passage in case of power failure to prevent fire accidents.
8. Turnstile with LED direction arrow board.
9. When the brake arm rotates more than 60 degrees, the mechanical override will automatically start to prevent tailgating.
10. There is an emergency button to ensure smooth access.
11. Realize remote control and management through the management computer.
|Framework:||304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)|
|Thickness of ply:||1.3mm (default)|
|Finish:||① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)|
|The maximum tolerance of the pole:||80Kg|
|Working driving force of the pole:||3Kg|
|Read facilities mounting:||may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.|
|Power voltage:||AC220V±10%, 50Hz±10%|
|Work movement:||Germany technology electromagnetic valve|
|Semi-automatic type:||In-built hydraulic shock absorber|
|Main-board voltage:||12V DC|
|Passing speed in normally open mode:||30~40 persons/min|
|Passing speed in normally closed mode:||25~30 persons/min|
|Time of opening / closing:||0.2 seconds|
|The time required to running state after power on:||5 seconds|
|Operation Temperature:||-10℃ ~ 70℃|
|Relative humidity:||≤95% not condensed|
|Input port:||relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal|
|Communications port:||RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet|
1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
