Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF2066 / RNCF2066S

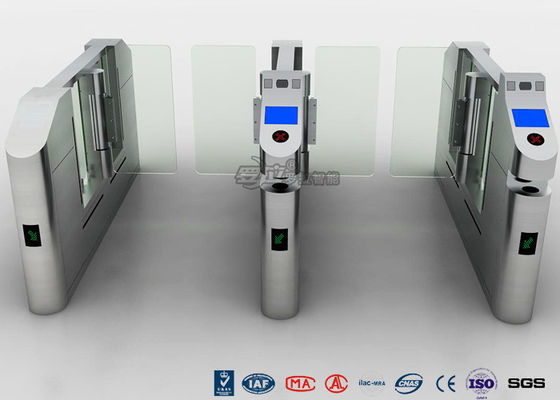

Stainless Steel Access Control Turnstiles Sliding Gate Turnstile CE certification
TECHNICAL SPECIFICATIONS:
|
Product Name |
Sliding Gate Turnstile |
|
|
Model |
RNCF2066 |
RNCF2066S |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default) |
|
|
Thickness of ply |
1.7mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1400mm*300mm*1023mm (default) |
|
|
Material of flap |
Tempered glass |
|
|
Stretching-out flap length |
230~235mm |
|
|
Height of Sliding Gate |
max of 1500mm (optional) |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
6 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal or DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. |
|
|
Warranty |
12 months |
|
|
Certificate |
CE |
|
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
STANDARD FEATURES & FUNCTIONS:
-> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.
-> The running status of device can be set up through pressing the built-in small keyboard of the main control board.
-> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.
-> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.
-> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.
-> Acoustic signal for announcement of unauthorised use.
-> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.
-> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);
-> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
-> Standard fire alarm input interface, requires N.C normally close contact.
-> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.
-> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.
DIMESNION SPECIFICATIONS:
