Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF1066 / RNCF1066S

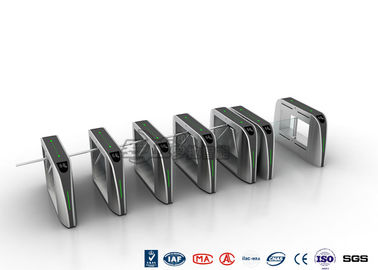

Stainless Steel Electronic Access Control Turnstiles Gate Personalized Design
PRODUCT CLASSIFICATIONS:
-> Single-core mechanism: RNCF1066
The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.
-> Dual-core mechanism: RNCF1066S
The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.
TECHNICAL SPECIFICATIONS:
|
Product Name |
Sliding Gate Turnstile |
|
|
Model |
RNCF1066 |
RNCF1066S |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default) |
|
|
Thickness of ply |
1.7mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1210mm*310mm*1000mm (default) |
|
|
Material of flap |
Tempered glass |
|
|
Stretching-out flap length |
230~235mm |
|
|
Height of Sliding Gate |
max of 1500mm (optional) |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
6 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal or DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. |
|
|
Warranty |
12 months |
|
|
Certificate |
CE |
|
cancel the users’ pass right and arm close automatically
* Arm automatically open when the power off to make sure safety In case of emergency
* Optional for external counter to record the people numbers for each lane
* Single way or Bi-directional adjustable based on the requirement.
* Equipped with LED directional indication / status lights
1. Public Places: lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance.
