Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 838

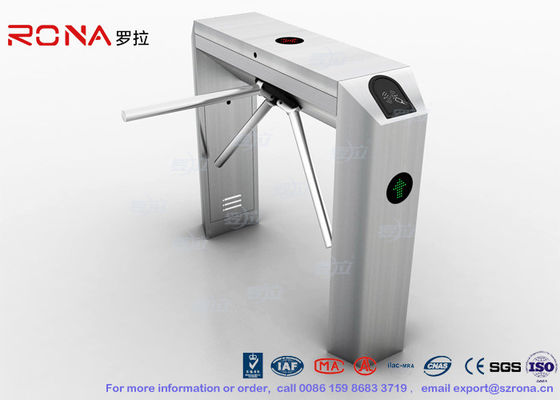

Self-Test Function Tripod Turnstile Gate Stainless Steel 25~30 Persons/Min
SPECIFICATIONS of waist height turnstile
Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Self-test function, when power on, system restoration automatic.
Single directional or Bi-directional is selectable.
LED indicator.
Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.
|
Model |
RNCF-838 |
|
Voltage |
AC 220V/110V±10% |
|
Frequency |
50/60Hz |
|
Current |
3A |
|
Control circuit: |
DC24V |
|
Power consumption |
40W |
|
Working temperature |
-20°C~60°C |
|
Working humidity |
0~95%RH |
|
Protection grade |
IP44 |
|
Arm length |
500mm |
|
Arm diameter |
38mm |
Functions and Features of the sliding gates :
1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Flap barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
