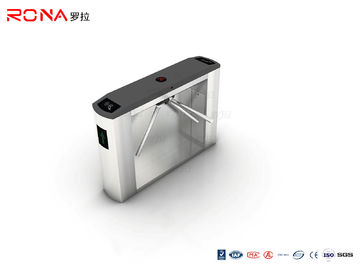

Bridge Type Pedestrian Security System RFID Tripod Turnstiles With Fingerprint Reader

Bridge Type Pedestrian Security System RFID Tripod Turnstiles With Fingerprint Reader

Tripod Security Gates SUS304

Bridge Type Tripod Gate Barrier

Fingerprint Reader Tripod Barrier Gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Framework Material:
1200L*280W*990H Mm
Machine Center:
Germany Technological Mechanism
Passing Speed:
30-40persons/min(normal Open)
Passage Width:
Automatic Tripod Turnstiles
Working Environment:
Communications Port:
RS232/ RS485
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Bridge Type Pedestrian Security System RFID Automatic Tripod Turnstiles Turnstiles Fingerprint Reader



1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control.
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. Standard input and output interface
6. Scour protection function ,when the gate signal is not received, the stick is automatically locked



Technical Parameters:

ramework: 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply: 1.3mm (default)
Finish: ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
Dimension(L*W*H): 1200mm*280mm*990mm (default)
Arm material: Steel
Arm length: 500mm
Arm diameter: 38mm
The maximum tolerance of the pole: 80Kg
Working driving force of the pole: 3Kg
Read facilities mounting: may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
Power voltage: AC220V±10%, 50Hz±10%
Work movement: Germany technology electromagnetic valve
Main-board voltage: 12VDC
Passage Width: 550mm
Passing speed in normally open mode: 30~40 persons/min
Passing speed in normally closed mode: 25~30 persons/min
Time of opening / closing: 0.2 seconds
The time required to running state after power on: 5 seconds
MTBF: 550mm
Operation Temperature: -10℃ ~ 70℃
Relative humidity: ≤95% not condensed
Operation environment: Indoor/Outdoor
Input port: relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port: RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification: CE
Warranty: 12 months
Net weight: 37KGS


Description Of Tripod Turnstile Gate

1. Arms auto drop when power off , insure unblocked when accident

2. standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

3. Manual button or remote control ,Bio-directional passage


304 Stainless Steel Durable Tripod Turnstile Gate for Amusement Park





Production line for Automatic tripod turnstiles

Bridge Type Pedestrian Security System RFID Tripod Turnstiles With Fingerprint Reader 1


Export wooden box for package

Bridge Type Pedestrian Security System RFID Tripod Turnstiles With Fingerprint Reader 2
