Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF838-X

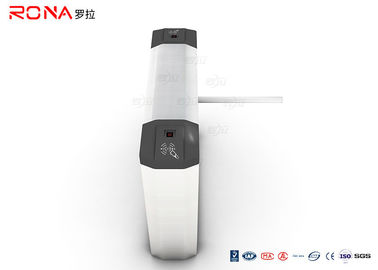

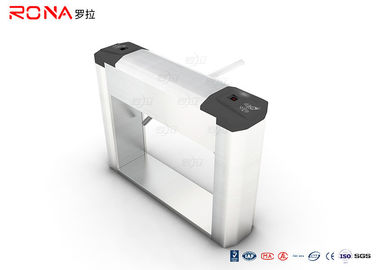

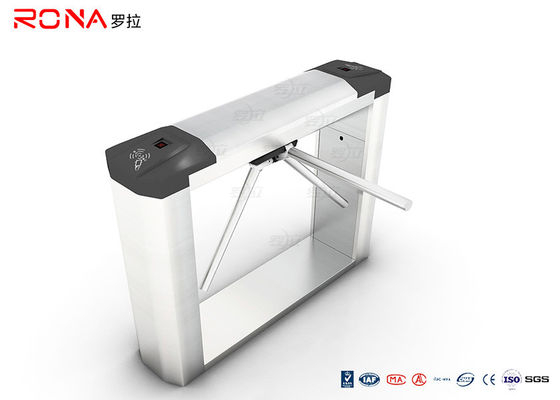

Semi-Automatic Tripod Turnstile Gate Access Control System with Counting Function Ic Card Reader
Tripod Turnstile Description:
Made of 304 stainless steel,tripod turnstile with nice and elegant shape,antirust,durable,resistant to external damage,Rectangular box and brake lever to be a passage,provide orderly passage to people,Prevent illegal in and out.Arms off in emergency case.This is item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
FEATURES & BENEFITS:
1.Turnstile can setting the working condition by press the button of main control board.
2.Turnstile can compatible with door access control system,consumption system,biometric recognition system,ESD system and so on.
3.Turnstile use secondly mechanism with shock absorption device and anti-reverse device(with patent).
4.Tripod turnstile with swiping card memory function.
5.Can manager and long-range control the turnstile derectly by managing the computer.
Operate Models:
| 1. | Single passage in the set direction. |
| 2. | Bi-directional single passage. |
| 3. | Free passage in the set direction. |
| 4. | Always free or locked. |
Technical Parameters:
Framework: | 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: | 1.3mm (default) |
Finish: | brushed surface, polishing surface |
Dimension(L*W*H): | 1200mm*280mm*1000mm |
Arm material: | Steel |
Arm length: | 500mm |
Arm diameter: | 38mm |
The maximum tolerance of the pole: | 80Kg |
Working driving force of the pole: | 3Kg |
Read facilities mounting: | may be mounted on the surface of turnstile, or flush mounted, or rack mounting. |
Power voltage: | AC220V±10%, 50Hz±10% |
Work movement: | Germany technology electromagnetic valve |
Semi-automatic type: | In-built hydraulic shock absorber |
Main-board voltage: | 12V DC |
Passage Width: | 550mm |
Passing speed: | 30~35 persons/min |
MTBF: | 5 million |
Time of opening / closing: | 0.2 seconds |
The time required to running state after power on: | 5 seconds |
MTBF: | 550mm |
Operation Temperature: | -10℃ ~ 70℃ |
Relative humidity: | ≤95% not condensed |
Operation environment: | Indoor/Outdoor |
Input port: | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: | RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: | CE |
Warranty: | 12 months |
Net weight: | 47KGS |
Project Case for tripod Turnstile:
