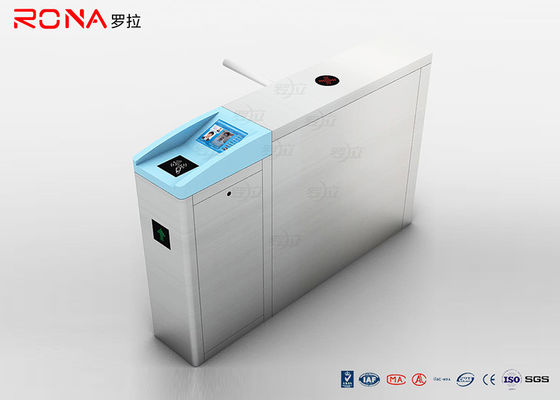

Semi Automatic Pedestrian Turnstile Gate Waist 304 Stainless Steel Tripod With Ticketing System

Semi Automatic Pedestrian Turnstile Gate Waist 304 Stainless Steel Tripod With Ticketing System

turnstile security gate

tripod access system

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
Semi-Automatic Pedestrian Access Control Waist 304 Stainless Steel Tripod With Ticketing System
Communication Interface:
RS 485, Distance ≤1200m
Passage Width:
Singel And Bi-directional
Access Control:
Pass Speed:
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description


Semi-Automatic Pedestrian Access Control Waist 304 Stainless Steel Tripod with Ticketing System



Product Description

1)The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.

2)Tripod turnstile is ideal for both indoor and outdoor settings.

3)It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

4)In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.

5)This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
6)There is a series of turnstiles. You can choose the item and specification. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruction!



Technical parameters


Description Parameters
Item / Model RNCF P138
Running life >3 million
Working voltage AC220±10% 50hz 50w
Max bearing stress of arm 80KG
Open direction Unidirectional and bidirectional (optional)
Opening time 0.3S(adjustable)
Size 1200mm*280mm*990mm
Thickness of Housing 2.0mm
Length of the bar 500-550mm
Passage width 500-1800mm
Swing arm work angle 180°


Standard functions & features of Tripod Turnstiles Gate


1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
3. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
4. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
5. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
6. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
7. Optional indication of inside LED counter or outside LED counter
8. With interface of switch of relay, compatible with all the access controller


Adaptive Place

1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.



Semi Automatic Pedestrian Turnstile Gate Waist 304 Stainless Steel Tripod With Ticketing System 0
