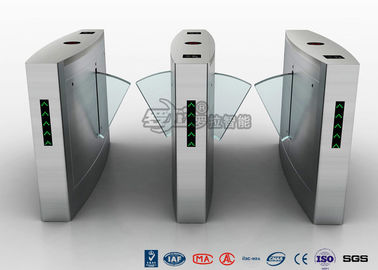

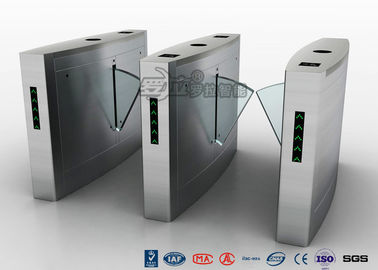

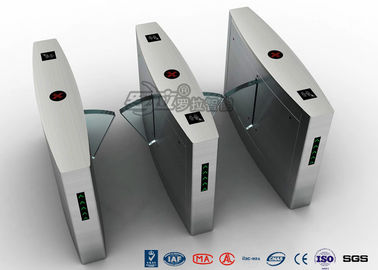

Waist Height Turnstile Access Control Automatic Flap 12V DC With Ticketing System

Waist Height Turnstile Access Control Automatic Flap 12V DC With Ticketing System

automatic systems turnstiles

waist high turnstile

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
Automatic Flap Barrier Turnstile / Waist Height Turnstile With Ticketing System
Material Of Flap:
Acrylic Flap Available Or Red Soft Flapper
Passage Width:
Mean Time To Failure:
5 000 000
304 Stainless Steel & Stoving Varnish
Single And Bi-directional
Tine To Opean And Close Gate:
0.6 Seconds
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Automatic Flap Barrier Turnstile / Waist Height Turnstile with Ticketing System






Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with

complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.



Product Features:
1.Stainless steel housing, novel and beautiful design, durable and stable mechanism.
2. LED Indicator Light of Automatic Waist Height Turnstile: Red and green light prompt the passing information.

3. Infrared and mechanical anti-clamping functions provide double protection.

4.All electric modules are designed to operate under the safety voltage of 24V, and Waist Height Turnstile is configured with residual current protective device to effectively avoid electric shocks.
5. Unique incomplete wheel transmission is adopted to make Waist Height flap barriers held or unheld in zero position more accurate and reliable.

6. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits

7.When power off, Hot Selling Automatic Flap Barrier Gate open automatically and power on again, Flap Barrier Gate will be held automatically.



Tenical Parameters


Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)
Thickness of ply 2.0mm
Finish brushed surface, polishing surface or anti-fingerprint surface (optional)
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC Brush motor
Main-board voltage 12V DC
In-built Infrared 5 pairs/lane
The time required to running state after power on 3 seconds
Automatic reset time after the failure 10 seconds
Operation temperature -10℃ ~ +70℃
Relative humidity less than 90% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port communications range≤1200m





Extend Functions



The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.



1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)




Waist Height Turnstile Access Control Automatic Flap 12V DC With Ticketing System 0
