Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF938 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Product Name: | Fingerprint Reader Tripod Turnstile Gate RFID Flap Barrier 30 Persons / Min Speed | Dimension: | 1200L*280W*990H Mm |
---|---|---|---|
Motor: | DC Brushless Motor | Passing Speed: | 30 Persons/min |
Passage Width: | 550mm | Mean Time To Failure: | 5 Million |
Working Environment: | Indoor Or Outdoor | Communications Port: | RS232/ RS485 |
High Light: | turnstile security gate,tripod access system,fingerprint reader tripod access control |
Access Pedestrian Tripod Turnstile Gate Barrier DC Brushless Motor CE Approved with RFID Card
Description:

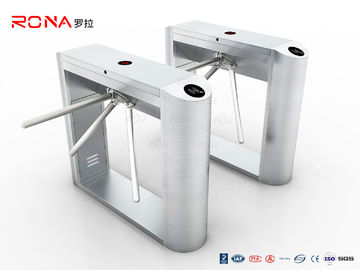

Bridge type tripod turnstileRNCF938 is with bevel design and has no side baffle, which is light and beautiful, simple and fashion; the housing made of stainless steel is durable; the mechanism modules are imported from the international top brands’ DC brushless motors and precise positioning encoders, so as to make sure the turnstile poles can rotate quickly and accurately, stably and quietly, with low-power consumption, energy conservation and environment protection
Product Function:
● Passing mode switching function:The entry and exit can be set independently【controlled mode】/【free mode】/【forbidden mode】
● Anti-reverse passing function: If one direction receives valid opening signal and within the passing time, pedestrian walk into the passage in another direction to push the poles will be considered as the illegal reverse intrusion,then the poles will be locked to prevent pedestrians' illegal reverse passing.
● Emergency escape function: Equipped with emergency escape control device, one of the poles will drop down automatically to evacuate pedestrians conveniently.
● Automatic reset function: The tripod Turnstile Gate RNCF938 will open after receiving the valid opening signal when standby. The poles will return to the hindered zero position automatically under the following situation:
1) Pedestrian finishes passing;
2) Exceed allowed passing limit time.
● Drop down the pole when power off : Adopt the leading mechanical structure by original creation; one of the poles will drop down automatically when power off so as to evacuate people conveniently, which meets the firefighting requirement.
● Passing indication function: Installed at the top cover of the housing, indicating the valid passing direction of the turnstile.
Technical Parameters:
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: |
1.3mm (default) |
Finish: |
① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
Dimension(L*W*H): |
1200mm*280mm*990mm (default) |
Arm material: |
Steel |
Arm length: |
500mm |
Arm diameter: |
38mm |
The maximum tolerance of the pole: |
80Kg |
Working driving force of the pole: |
3Kg |
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
Power voltage: |
AC220V±10%, 50Hz±10% |
Work movement: |
Germany technology electromagnetic valve |
Semi-automatic type: |
In-built hydraulic shock absorber |
Main-board voltage: |
12V DC |
Passage Width: |
550mm |
Passing speed in normally open mode: |
30~40 persons/min |
Passing speed in normally closed mode: |
25~30 persons/min |
Time of opening / closing: |
0.2 seconds |
The time required to running state after power on: |
5 seconds |
MTBF: |
550mm |
Operation Temperature: |
-10℃ ~ 70℃ |
Relative humidity: |
≤95% not condensed |
Operation environment: |
Indoor/Outdoor |
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: |
CE |
Warranty: |
12 months |
Net weight: |
37KGS |
Applications:
1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
