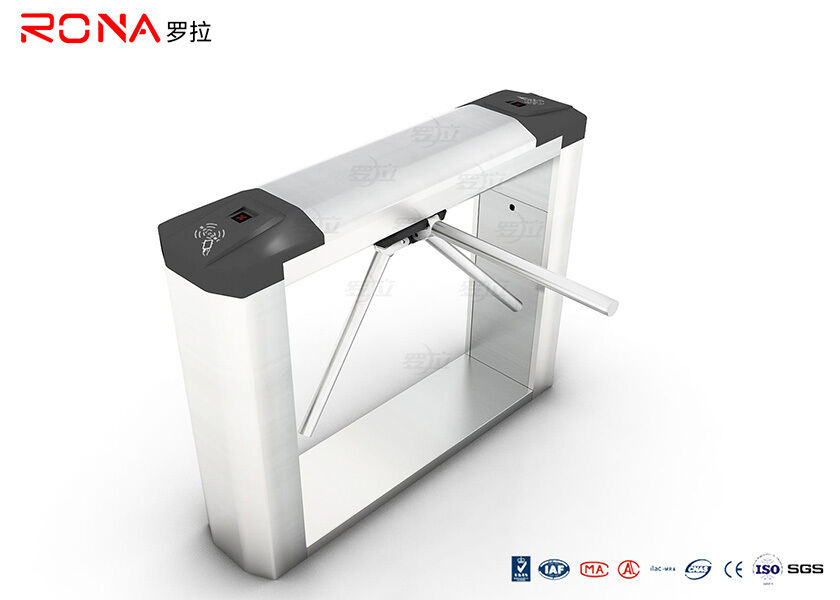

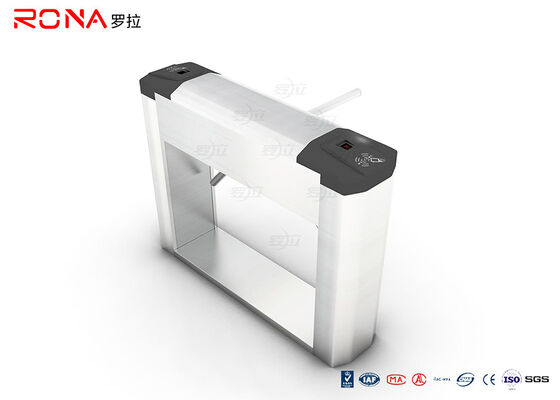

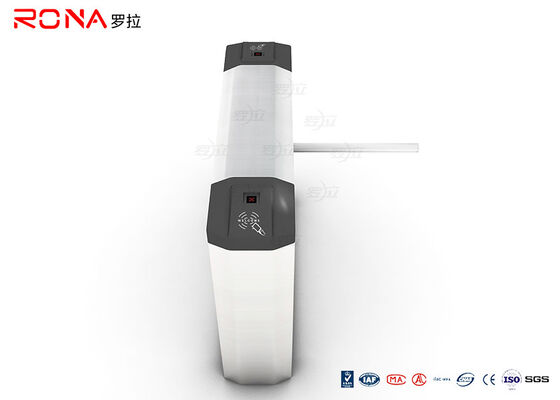

RONA Tripod Turnstile Access Control Electronic Entrance LED Counter Display Tripod Turnstile
Tripod Turnstile Description:
| 1. | All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. |
| 2. | They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. |
| 3. | The turnstile creates a secure environment in. for example, a reception area. |
| 4. |
Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control. |
FEATURES & BENEFITS:
| 1. | Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function. |
| 2. | A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage. |
| 3. | Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position. |
| 4. | Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position. |
| 5. | Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers. |
| 6. | Single or bi-directional function in mechanical and electrical versions. |
| 7. | Automatic reset of barrier arms after each passage. |
| 8. | Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency. |
| 9. | Adjustable time out delay. |
Operate Models:
| 1. | Single passage in the set direction. |
| 2. | Bi-directional single passage. |
| 3. | Free passage in the set direction. |
| 4. | Always free or locked. |
Technical Parameters:
|
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
|
Thickness of ply: |
1.3mm (default) |
|
Finish: |
brushed surface, polishing surface |
|
Dimension(L*W*H): |
1200mm*280mm*1000mm |
|
Arm material: |
Steel |
|
Arm length: |
500mm |
|
Arm diameter: |
38mm |
|
The maximum tolerance of the pole: |
80Kg |
|
Working driving force of the pole: |
3Kg |
|
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. |
|
Power voltage: |
AC220V±10%, 50Hz±10% |
|
Work movement: |
Germany technology electromagnetic valve |
|
Semi-automatic type: |
In-built hydraulic shock absorber |
|
Main-board voltage: |
12V DC |
|
Passage Width: |
550mm |
|
Passing speed: |
30~35 persons/min |
|
MTBF: |
5 million |
|
Time of opening / closing: |
0.2 seconds |
|
The time required to running state after power on: |
5 seconds |
|
MTBF: |
550mm |
|
Operation Temperature: |
-10℃ ~ 70℃ |
|
Relative humidity: |
≤95% not condensed |
|
Operation environment: |
Indoor/Outdoor |
|
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
|
Certification: |
CE |
|
Warranty: |
12 months |
|
Net weight: |
47KGS |
