|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||wooden cases packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Material::||304# Stainless Steel||Size::||L1500*W1350*H2200 Mm|
|Communications Interface::||RS232 / RS485||Transit Speed::||30 ~35 Persons/minute|
|MTBF::||5 Million||Working Environment::||Indoor Or Outdoor|

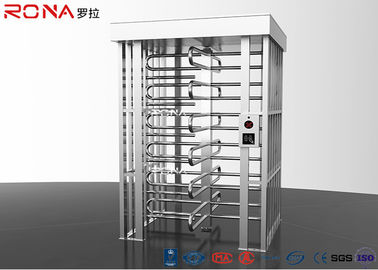

high security turnstile,
stainless steel turnstiles
The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system, ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card etc.
|2.||Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller|
Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).
Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.
|5.||The running status of device can be set up through pressing the built-in small keyboard of the main control board.|
When power off, the center rotor will be set free model (default) or be locked model (optional).
Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).
Remote control and management function: Through the management computer to realize remote control and management.
|Framework:||304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)|
|Thickness of ply:||1.7mm|
|Finish:||Brushed surface / Polished surface / Anti-Fingerprints surface|
|Shell’ size:||L1500mm*W1350mm*H2200mm (Standard)|
|The inductive card reader dimension:||equipped with the standard mounting brackets, or tailor.|
|Card Reader mounting:||Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.|
|Operation voltage:||AC220V±10% 50Hz±10%|
|Time of opening / closing:||0.2s|
|Time to work after power on:||3s|
|Reset time after breaking down:||10s|
|Transit speed:||30 persons/minute|
|Communications Interface:||RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)|
|Input interface:||relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA|
|Relative humidity:||≤90% Non-condensing|
|Working Environment:||-10℃ ~ 70℃, Indoor / Outdoor|
|The turnstile provides bi-directional access control. Each direction may be in one of three states:|
|Free passage: all person are authorized to pass under all conditions|
Controlled access: each person must use a card reader before being authorized to pass.
Lane closed: no persons are authorized to pass, and security cards are ignored.
