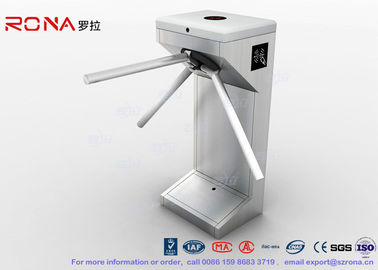

Network Access Control Tripod Turnstile Gate Semi Automatic Standing Type

Network Access Control Tripod Turnstile Gate Semi Automatic Standing Type

  • Network Access Control Tripod Turnstile Gate Semi Automatic Standing Type
Network Access Control Tripod Turnstile Gate Semi Automatic Standing Type
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF238
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Framework Material: 304# Stainless Steel Dimension: 420L*330W*990H Mm
Stretching Out Arm Length: 500mm Passing Speed: 30 Persons/min
Passage Width: 550mm Relative Humidity: ≤95% Not Condensed
Working Environment: Indoor Or Outdoor Normal Running Life: >3million
Model: RNCF238
High Light:

turnstile security gate


tripod access system


standing type tripod turnstile gate

Semi Automatic Standing-Type Tripod Turnstile With Network Access Control System For Security System
Product Classification:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.



Product Description:


Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.

2. Made of 304 stainless steel, tripod turnstile with nice and elegant shape, antirust, durable, resistant to external damage
3. Rectangular box and brake lever to be a passage, provide orderly passage to people
4. Prevent illegal in and out.
5. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Normally open and turnstile will unlock when a valid signal is received.


Allows one passenger at a time.

Standard Features & Function:

1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

3.  Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).

4.  Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).

5.  It can self-check and alarm which will be make it convenient to use.

6.  Several ways of working molds can be chosen at your request

7.  Auto open and provide a free passage when power off in case of fire accident .

8.  The turnstile with LED direction arrow plate.

9.  When the turnstile arms have rotated for more than 60 degrees, the mechanical override will be activated automatically to prevent tailgating.

10.  The emergency button which can ensure unblocked access is available.

11.  Through the management computer to realize remote control and management.


Technical Parameters:

Framework: 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply: 1.3mm (default)
Finish: ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
Dimension(L*W*H): 420mm*330mm*990mm (default)
Arm material: Steel
Arm length: 500mm
Arm diameter: 38mm
The maximum tolerance of the pole: 80Kg
Working driving force of the pole: 3Kg
Read facilities mounting: may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
Power voltage: AC220V±10%, 50Hz±10%
Work movement: Germany technology electromagnetic valve
Semi-automatic type: In-built hydraulic shock absorber
Main-board voltage: 12V DC
Passage Width: 550mm
Passing speed in normally open mode: 30~40 persons/min
Passing speed in normally closed mode: 25~30 persons/min
Time of opening / closing: 0.2 seconds
The time required to running state after power on: 5 seconds
MTBF: 550mm
Operation Temperature: -10℃ ~ 70℃
Relative humidity: ≤95% not condensed
Operation environment: Indoor/Outdoor
Input port: relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port: RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification: CE
Warranty: 12 months
Net weight: 37KGS



Extend functions:

1.Nonstandard Progran customized.

2.LED Counting function.

3.Turnstile shape can do customized.

4.Voice Prompt Function.

5.Can add constant temperature during the low temperature place.



1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
