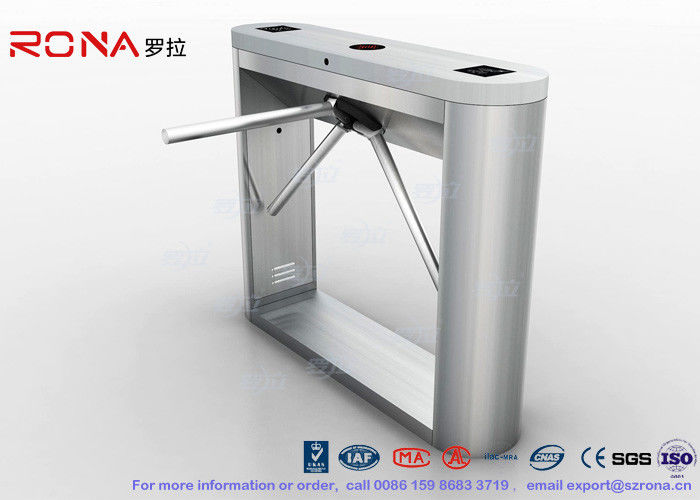

Vertical Tripod Barrier Gate , Entrance Control Solutions 30 Persons / Min

Vertical Tripod Barrier Gate , Entrance Control Solutions 30 Persons / Min

turnstile security gate

tripod access system

Place of Origin:


Brand Name:


Model Number:


Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
1200L*280W*990H Mm
Passing Speed:
30 Persons/min
Passage Width:
Mean Time To Failure:
Min. 5 000 000
Operation Temperature:
-10℃ ~ +70℃
Input Port:
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Communications Port:
RS232/ RS485
Single Or Bi-directional
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

High Quality  Access Control System Vertical Tripod Turnstile



Product Description:

1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both  directions.
2. Made of 304 Grade Stainless Steel, with antirust feature, firm crust and easy maintenance.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.
6. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
7. Normally open and turnstile will unlock when a valid signal is received.
8. Turnstile will lock automatically if passage is not completed within the pre-set time.
9.  Allows one passenger at a time.



Standard Function Features:

1.Turnstile can setting the working condition by press the button of main control board.
2.Turnstile can compatible with door access control system/consumption system/bipmetic recognition system/ESD system and so on.
3.Turnstile use secondly mechanism with shock absorption device and anti-reverse device(with patent)
4.Turnstile with 60° anti-reverse function.
5.Turnstile with auto-lift-arm function (full automatic) and auto-drop-arm function(full automatic and semi-automatic).
6.Automatic Reset Functions: after you swap the card, during the specific time(defult time is 10s), if you don't pass the turnstile, the system will cancel your authority automatically to pass the gate,(reset time is 1~60s). When out of power turnstile will open automatically, after connect the electricity turnstile will close automatically.
7.Tripod turnstile with LED direction arrow plate.
8.Tripod turnstile with swiping card memory function.
9.Through the management computer to realize remote control and management.



Extend functions:

1.Nonstandard Progran customized.

2.LED Counting function.

3.Turnstile shape can do customized.

4.Voice Prompt Function.

5.Can add constant temperature during the low temperature place.



1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
