Dual Way High Security Turnstile Mechanism Access Control Gate Bi - Directional

Dual Way High Security Turnstile Mechanism Access Control Gate Bi - Directional

high security turnstile

stainless steel turnstiles

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Life Span::
> 5 Million
Pass Speed::
20 ~30 Persons/minute
Communications Interface::
S485, TCP/IP
304# Stainless Steel(Optional)
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
wooden cases packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

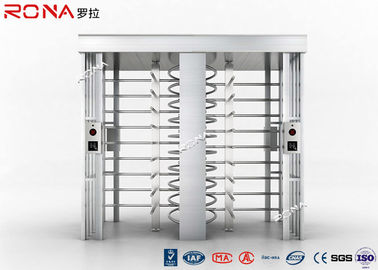

Dual-way full height turnstile mechanism access control turnstile Bi-directional

Model: RNCF21238FS-1 Dual Lane Full Height Turnstile

Product Descriptions:

  • After receiving a valid open signal, the semi-automatic turnstile arms need manually pushing forward to rotate. The turnstile works stably, safely and reliably.
  • The full height turnstile system is provided with a standard electric interface and is easily integrated into the 3rd party equipment with read/write facilities, such as Biometric reader, consumption system, ESD system and access control system etc.
  • Turnstile opens when power failures: With the industry's leading mechanical structure created by RONA, full height turnstile system will unlock the arms to be pushed freely, so as to evacuate people.
  • With the mechanical anti-tailgating design, full height turnstile gate can effectively achieve “one person passing at a time”.

Product Features:


  ​The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.



Technical Specifications:
Thickness of ply: 1.7 (mm)
Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
Arm size: 600L*38D (mm)
The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
Operation voltage: AC220V±10% 50Hz±10%
Communications Interface: RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Relative humidity: ≤90% Non-condensing
Working Environment: -10℃ ~ 70℃, Indoor / Outdoor
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.


Services Provided:

  • All items have 12 month quality guarantee.
  • OEM/ODM available: Custom design shape, color and logo.
  • Special discount of our distributors or agents in their area.
  • Packing in standard export carton, suggest you pack it by wooden case to protect the products.
  • Fast delivery: sample order in stock, 5~7 days for bulk production.
  • Payment: we can accept T/T, .
