Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 738

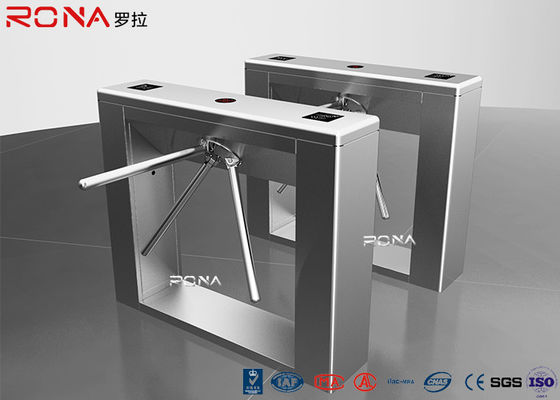

2018 Hot Selling Security Public Turnstiles With Face Recognition RFID And Card Reader Function
Technical parameters
| Description | Parameters |
| Item / Model | RNCF 738 |
| Normal Running life | ＞3 million |
| Working voltage | AC220±10% 50hz 50w |
|
Max bearing stress of arm |
80KG |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.2S(adjustable) |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm |
| Length of the bar | 500-550mm |
| Working movement | 24v solenoid valve (German technology) & 24v DC Brush Motor |
| LED light | direction and arrow |
Product Description
| 1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions. |
| 2. Made of 304 Grade Stainless Steel, with antirust feature, firm crust and easy maintenance. |
| 3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device). |
| 4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage. |
| 5. Optical Turnstiles are suit for elegant and luxury entrance solutions. |
| 6. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment. |
| 7. Normally open and turnstile will unlock when a valid signal is received |
| 8. Turnstile will lock automatically if passage is not completed within the pre-set time |
| 9. Allows one passenger at a time |
Standard functions & features of Tripod Turnstiles Gate
| 1. | The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. |
| 2. | Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. |
| 3. | Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). |
| 4. | Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. |
| 5. | Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
| 6. | Powerful on-line intelligent control mode, facilitating you |
| 7. | Optional indication of inside LED counter or outside LED counter |
| 8. | With interface of switch of relay, compatible with all the access controller |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
