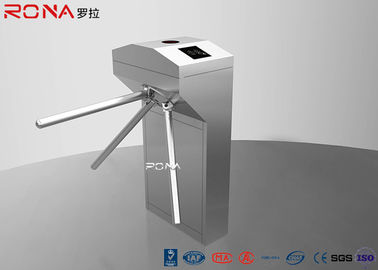

Half Height Pedestrian Turnstile Gate Both Directional RFID Card Reader

Half Height Pedestrian Turnstile Gate Both Directional RFID Card Reader

turnstile security gate

tripod access system

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF 238-1

Contact Us
Request A Quote
Product Details
Product Name:
Customizable Both Directional RFID Card Reader Half Height Tripod Turnstile
Thickness Of Material:
Arm Length:
304# Stainless Steel
Access Control:
Silver/(custom Made)
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description


Pedestrian Access Control Ticket System Stainless Steel Tripod Turnstile



Technical parameters


Description Parameters
Item / Model RNCF 238-1
Running life >3 million
Working voltage AC220±10% 50hz 50w

Max bearing stress of arm

Open direction Unidirectional and bi-directional (optional)
Opening time 0.2S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Length of the bar 500-550mm
Passage width 500-1800mm


Pass speed

30 pearsons/min



Product Description


Rona tripod turnstiles gates offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.



Standard functions & features of Tripod Turnstiles Gate


1. Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically
2. tripod turnstile Bi-direction passing or uni-direction
3. When power off, arm will be dropped automatically
4. Self-lock function: arm will be locked automatically after passenger passing
5. LED passing arrow can show direction to indicate passenger to pass
6. Standard interfaces are convenient for connection with different readers which can send relay signal
7. RS485 interfaces can connect turnstile with computer directly
8. Stable running with little noise.


Adaptive Place

1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.




Half Height Pedestrian Turnstile Gate Both Directional RFID Card Reader 0
