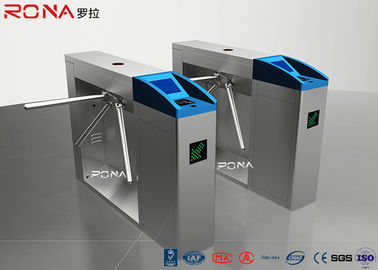

Pedestrian Access Control Tripod Access System 550mm Passage Width Silver Color

Pedestrian Access Control Tripod Access System 550mm Passage Width Silver Color

turnstile security gate

tripod access system

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF P138

Contact Us
Request A Quote
Product Details
Product Name:
Pedestrian Access Control Ticket System Stainless Steel Tripod Turnstile
Dimension(L*W*H):
1200mm*280mm*990mm
Thickness Of Material:
1.5mm
Communication Interface:
RS 485, Distance ≤1200m
Passage Width:
550mm
Material:
304# Stainless Steel
Access Control:
RFID,fingerprint,barcode,esd,token
Color:
Silver
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description



Pedestrian Access Control Ticket System Stainless Steel Tripod Turnstile





Technical parameters



Description Parameters
Item / Model RNCF P138
Running life >3 million
Working voltage AC220±10% 50hz 50w

Max bearing stress of arm

80KG
Open direction Unidirectional and bidirectional (optional)
Opening time 0.3S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Length of the bar 230-900mm
Passage width 500-1800mm
Swing arm work angle 180°





Product Description



1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.





Standard functions & features of Tripod Turnstiles Gate



1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
3. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
4. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
5. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
6. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
7. Optional indication of inside LED counter or outside LED counter
8. With interface of switch of relay, compatible with all the access controller



Adaptive Place


1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.







Pedestrian Access Control Tripod Access System 550mm Passage Width Silver Color 0
