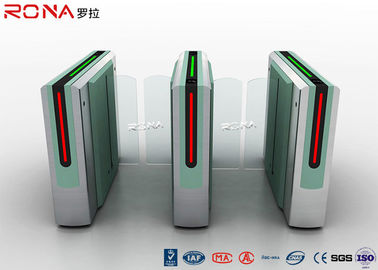

Luxury Automatic Optical Sliding Barrier Gate 50HZ With Access Control System

Luxury Automatic Optical Sliding Barrier Gate 50HZ With Access Control System

automatic systems turnstiles

urnstile access control

50HZ Sliding Barrier Gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Guangdong, China (Mainland)
Sliding Turnstile
304 Grade Stainless Steel
Swing Arm Material:
Tempered Glass
Transit Speed:
30 Persons/min
Power Voltage:
AC220 (10%more Or Less) V,50HZ
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
T/T, L/C,
Supply Ability
2000 units Per Month
Product Description


Luxury Automatic Optical Sliding Type Gate Turnstiles With Access Control System


Description Parameters
Item / Model RNCF 2066
Power voltage AC220±10%,50Hz
Drive voltage DC24V 20W
Pass Speed not more than 30 persons/minutes
Open direction Unidirectional and bidirectional (optional)
Opening time 1S/adjustable
Humidity ≤90% coagulation free
Material Thickness 2.0mm(Optional)
Length of the bar 230~900mm
Way One-Way / Two-Way



Product Description


1. Illegal Alarm Function Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
2. Anti-pinch function Barriers auto open when power shut, insure user safety
3. Housing 304 Stainless Steel(Light Wire Drawing Type)
4. Emergency-escape function The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not
5.Standard input/output port Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
6.Control Software Access Control System / Electronic Ticketing System / Consumer System, Etc.



Standard functions & features of Sliding Turnstiles Gate


1. Kinds Of Mode Alarm Function, Including Illegal Intrusion, Anti Intrusion, Trailing, Traffic Alarm, Etc.
2.Anti Impact Function, In The Absence Of The Received Gate Signal, Automatically Block Arm Lock Or Alarm
3. Normally Open, Normally Closed Mode Can Be Adjusted, Easily Through The Dial Code Or External Manual Button Control

4. Flexible Access Indication Function, High Brightness Indicator Light And The Human Nature Of The Prompt Function, Let The Channel More Features

5. A Variety Of Traffic Patterns Can Be One-Way Or Two-Way Control Personnel, Or One-Way Controlled, Reverse Free Access.

6. Mechanical, Infrared Double Anti Pinch Function, In Arms Reduction Process Blocked In The Block, Automatic Stop Or Rebound, And Send Out Alarm Signals;


Extended functions


1. Counting Function
2. LED counting function
3. Voice prompt function
4. Barrier color can choose
5. Secondly opening function to meet ticket system and anti-passback function




Luxury Automatic Optical Sliding Barrier Gate 50HZ With Access Control System 0Luxury Automatic Optical Sliding Barrier Gate 50HZ With Access Control System 1
