|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Name::||Tripod Turnstile||Type:||Semi- Automatic|
|Size::||1200mm (L) * 280mm (W) * 990mm (H)||Working Voltage:||AC220±10%V 50±10%HZ|
|Material::||304 Stainless Steel||Mechanism::||DC24V Solenoid Valve|
|MTBF:||5 Million||Warranty::||12 Months|
turnstile security gate,
tripod access system,
automation rfid tripod security gates

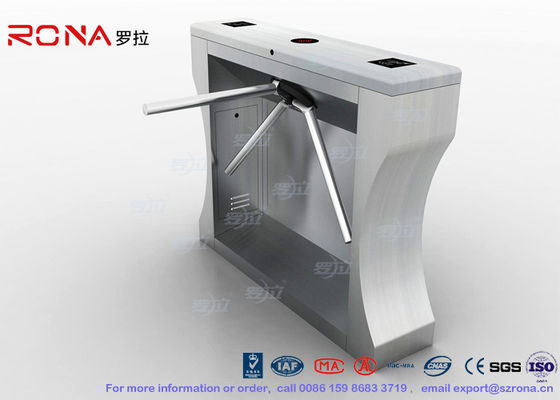

Automation RFID Stainless Steel Turnstile Access Control For Office Building
Made of 304 stainless steel, tripod turnstile with nice and elegant shape,antirust,durable, resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
This equipment is integrate with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,bar code,fingerprint reader and so on ,to provide intelligent control and management to flow control.
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.
STANDARD FEATURES & FUNCTIONS:
1. Turnstile can setting the working condition by press the button of main control board.
2. Turnstile can compatible with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
3. Tripod turnstile use secondly mechanism with shock absorption device and anti-reverse device(with patent).
4. Tripod turnstile with 60°anti-reverse function (Advantages)
5. Tripod turnstile with auto-lift-arm function(full automatic) and auto-drop-arm function(full automatic and semi-automatic).
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you don’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s ). When out of power turnstile will open automatically, after connect the electricity turnstile will close automatically.
7. Tripod turnstile with LED direction arrow plate .
8. Tripod turnstile with swiping card memory function.
9. Can manager and long-range control the turnstile directly by managing the computer.
|Framework:||304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)|
|Thickness of ply:||1.3mm (default)|
|Finish:||① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)|
|The maximum tolerance of the pole:||80Kg|
|Working driving force of the pole:||3Kg|
|Read facilities mounting:||may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.|
|Power voltage:||AC220V±10%, 50Hz±10%|
|Work movement:||Germany technology electromagnetic valve|
|Semi-automatic type:||In-built hydraulic shock absorber|
|Main-board voltage:||12V DC|
|Passing speed in normally open mode:||30~40 persons/min|
|Passing speed in normally closed mode:||25~30 persons/min|
|Time of opening / closing:||0.2 seconds|
|The time required to running state after power on:||5 seconds|
|Operation Temperature:||-10℃ ~ 70℃|
|Relative humidity:||≤95% not condensed|
|Input port:||relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal|
|Communications port:||RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet|
