Fingerprint / Face Reader Pedestrian Turnstile Gate Solution 304 Stainless Steel

Fingerprint / Face Reader Pedestrian Turnstile Gate Solution 304 Stainless Steel

  • Fingerprint / Face Reader Pedestrian Turnstile Gate Solution 304 Stainless Steel
  • Fingerprint / Face Reader Pedestrian Turnstile Gate Solution 304 Stainless Steel
Fingerprint / Face Reader Pedestrian Turnstile Gate Solution 304 Stainless Steel
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF638
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case package
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Housing Material:: 304 Stainless Steel Thickness:: 1.3mm
Passage Width:: 550mm Install Place:: Indoor Or Outdoor
Warranty:: One Year Testing:: 5 Million No Fault
Dimensions:: 1200L*280W*990H Mm
High Light:

pedestrian turnstile gate


turnstile security gate

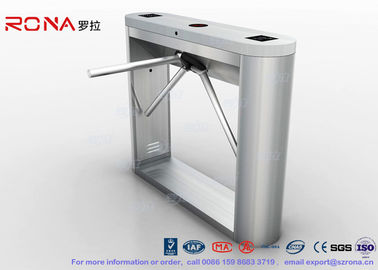

Tripod Turnstile Gate solution for fingerprint reader or face reader with 304 Stainless Steel



Tripod turnstiles offer dissuasive automated access control for sites with heavy use. This is simple, economical and compact equipment.

The tripod turnstiles are designed for an economic and dissuasive access control and can incorporate access control devices such as: card readers, coin/token acceptors, ticketing systems, etc .
Their mechanical design is strong and reliable. They exist in different configurations to suit all architectural requirements in terms of pedestrian access control.
The tripod turnstile includes an anti-panic device, which, in case of power failure, automatically unlocks the arm, which instantaneously drops. The access corridor is then fully free of any obstruction, thus allowing uninterrupted safe passage.
The repositioning of the arm is done manually when power supply is restored.
The tripod turnstiles can be installed indoors or outdoors, alone or in combination with others.
The tripod turnstiles are very robust products that can function equally well inside and outside buildings. They are particularly well-suited to the needs of access control at leisure centers, stadiums and factories.
Well-built for increased durability, our tripod turnstiles efficiently control high throughput. Since they can be installed inside or outside buildings, our tripod turnstiles provide unfailing control of occasional user abuse.



  • Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space

  • Non-removable stainless steel arms to prevent vandalism

  • Durable, corrosion-resistant, heavy-duty mechanism for extended service life


As an access-control application, the tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :

  • Schools, universities and colleges

  • Office buildings, head offices, administrative sites

  • Industrial and manufacturing facilities

  • Sports centers, Cultural or entertainment venues

  • Ports and harbors



304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)

Thickness of ply:

1.3mm or 1.7mm


brushed surface, polishing surface



Arm material:


Arm length:


Arm diameter:


The maximum tolerance of the pole:


Working driving force of the pole:


Read facilities mounting:

may be mounted on the surface of turnstile, or flush mounted, or rack mounting.

Power voltage:

AC220V±10%, 50Hz±10%

Work movement:

Germany technology electromagnetic valve

Semi-automatic type:

In-built hydraulic shock absorber

Main-board voltage:

12V DC

Passage Width:


Passing speed:

30~35 persons/min


5 million

Time of opening / closing:

0.2 seconds

The time required to running state after power on:

5 seconds



Operation Temperature:

-10℃ ~ 70℃

Relative humidity:

≤95% not condensed

Operation environment:


Input port:

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port:

RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet




12 months

Net weight:
