Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty

Name: Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF438
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF438
MOQ:	1
Price:	Negotiation
Delivery Time:	7-15 working days
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO9001

Housing Material::

304 Stainless Steel

Thickness::

1.3mm Or 1.7mm

Passage Width::

550mm

Warranty::

One Year

Testing::

5 Millions

Dimensions::

1200L*280W*990H Mm

Passing Speed::

30~35 Persons/min

Packaging Details:

Wooden case package

Supply Ability:

2000 units Per Month

Highlight:

pedestrian turnstile gate

tripod access system

Product Description

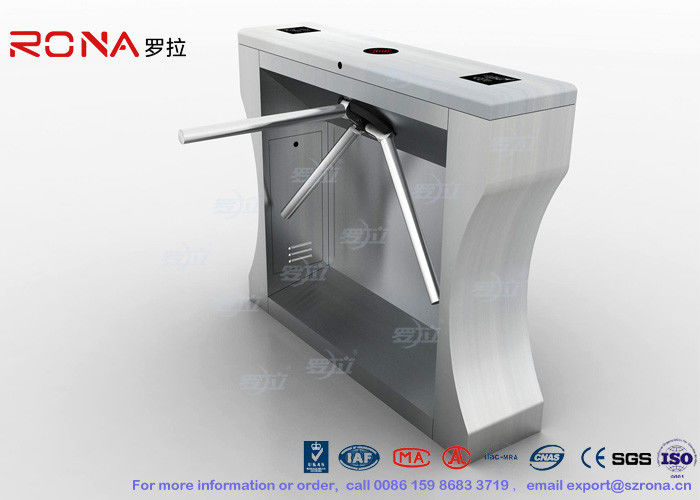

Tripod Turnstile Gate solution for secure entrance control with 304 Stainless Steel

TRIPOD TURNSTILES:

Tripod turnstiles offer dissuasive automated access control for sites with heavy use. This is simple, economical and compact equipment.

The tripod turnstiles are designed for an economic and dissuasive access control and can incorporate access control devices such as: card readers, coin/token acceptors, ticketing systems, etc .

Their mechanical design is strong and reliable. They exist in different configurations to suit all architectural requirements in terms of pedestrian access control.

The tripod turnstile includes an anti-panic device, which, in case of power failure, automatically unlocks the arm, which instantaneously drops. The access corridor is then fully free of any obstruction, thus allowing uninterrupted safe passage.

The repositioning of the arm is done manually when power supply is restored.

The tripod turnstiles can be installed indoors or outdoors, alone or in combination with others.

The tripod turnstiles are very robust products that can function equally well inside and outside buildings. They are particularly well-suited to the needs of access control at leisure centers, stadiums and factories.

Well-built for increased durability, our tripod turnstiles efficiently control high throughput. Since they can be installed inside or outside buildings, our tripod turnstiles provide unfailing control of occasional user abuse.

MIAN BENEFITS:

Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space
Non-removable stainless steel arms to prevent vandalism
Durable, corrosion-resistant, heavy-duty mechanism for extended service life

APPLICATION:

As an access-control application, the tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :

Schools, universities and colleges
Office buildings, head offices, administrative sites
Industrial and manufacturing facilities
Sports centers, Cultural or entertainment venues
Ports and harbors

TECHNICAL SPECIFICATIONS:

Framework:	304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply:	1.3mm or 1.7mm
Finish:	brushed surface, polishing surface
Dimension(LWH):	1200mm280mm990mm
Arm material:	Steel
Arm length:	500mm
Arm diameter:	38mm
The maximum tolerance of the pole:	80Kg
Working driving force of the pole:	3Kg
Read facilities mounting:	may be mounted on the surface of turnstile, or flush mounted, or rack mounting.
Power voltage:	AC220V±10%, 50Hz±10%

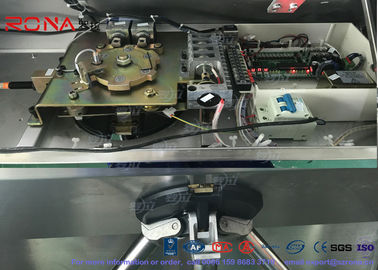

Work movement:	Germany technology electromagnetic valve
Semi-automatic type:	In-built hydraulic shock absorber
Main-board voltage:	12V DC
Passage Width:	550mm
Passing speed:	30~35 persons/min
MTBF:	5 million
Time of opening / closing:	0.2 seconds
The time required to running state after power on:	5 seconds
MTBF:	550mm
Operation Temperature:	-10℃ ~ 70℃
Relative humidity:	≤95% not condensed
Operation environment:	Indoor/Outdoor
Input port:	relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port:	RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification:	CE
Warranty:	12 months
Net weight:	57KGS

Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty 0

Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty 1

Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty 2
