Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF838H

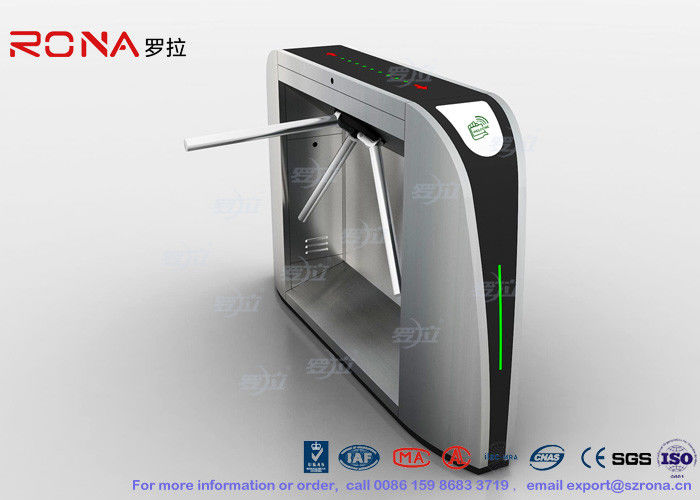

TRIPOD TURNSTILE:
All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in. for example, a reception area. Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
FEATURES & BENEFITS:
1. Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
2. A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3. Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4. Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5. Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
6. Single or bi-directional function in mechanical and electrical versions.
7. Automatic reset of barrier arms after each passage.
8. Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
9. Adjustable time out delay.
MATERIALS:
1. Housing: In stainless steel # 304 or #316.
2. Barrier arm- stainless steel bar.
TECHNICAL SPECIFICATIONS:
|
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
|
Thickness of ply: |
1.3mm (default) |
|
Finish: |
brushed surface, polishing surface |
|
Dimension(L*W*H): |
1600mm*280mm*1020mm |
|
Arm material: |
Steel |
|
Arm length: |
500mm |
|
Arm diameter: |
38mm |
|
The maximum tolerance of the pole: |
80Kg |
|
Working driving force of the pole: |
3Kg |
|
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. |
|
Power voltage: |
AC220V±10%, 50Hz±10% |
|
Work movement: |
Germany technology electromagnetic valve |
|
Semi-automatic type: |
In-built hydraulic shock absorber |
|
Main-board voltage: |
12V DC |
|
Passage Width: |
550mm |
|
Passing speed: |
30~35 persons/min |
|
MTBF: |
5 million |
|
Time of opening / closing: |
0.2 seconds |
|
The time required to running state after power on: |
5 seconds |
|
MTBF: |
550mm |
|
Operation Temperature: |
-10℃ ~ 70℃ |
|
Relative humidity: |
≤95% not condensed |
|
Operation environment: |
Indoor/Outdoor |
|
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
|
Certification: |
CE |
|
Warranty: |
12 months |
|
Net weight: |
70KGS |
CUSTOMIZED FEATURES:
Alternative Materials, Finishes and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry.
Remote-Controlled Button
Access Control System Integration
Camera System Integration
Thermostat System Integration
