Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF438 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case package |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Housing Material:: | 304 Stainless Steel | Thickness:: | 1.3mm Or 1.7mm |
---|---|---|---|
Passage Width:: | 550mm | Warranty:: | One Year |
Testing:: | 5 Millions | Dimensions:: | 1200L*280W*990H Mm |
Passing Speed:: | 30~35 Persons/min | ||
High Light: | pedestrian turnstile gate,tripod access system |

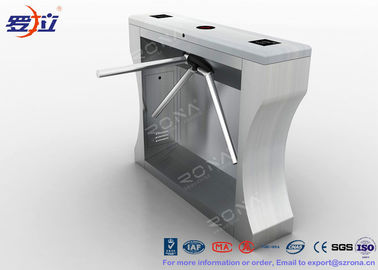

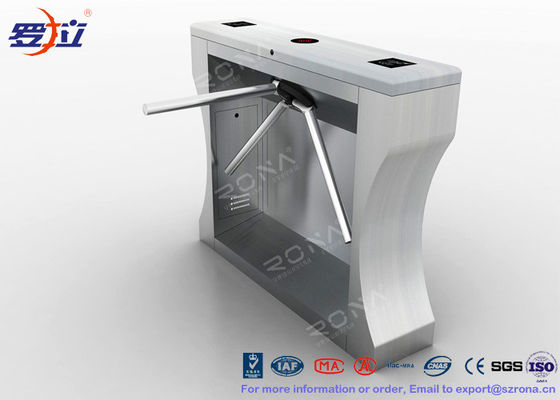

TRIPOD TURNSTILES:
Tripod turnstiles offer dissuasive automated access control for sites with heavy use. This is simple, economical and compact equipment. |
The tripod turnstiles are designed for an economic and dissuasive access control and can incorporate access control devices such as: card readers, coin/token acceptors, ticketing systems, etc . |
Their mechanical design is strong and reliable. They exist in different configurations to suit all architectural requirements in terms of pedestrian access control. |
The tripod turnstile includes an anti-panic device, which, in case of power failure, automatically unlocks the arm, which instantaneously drops. The access corridor is then fully free of any obstruction, thus allowing uninterrupted safe passage. |
The repositioning of the arm is done manually when power supply is restored. |
The tripod turnstiles can be installed indoors or outdoors, alone or in combination with others. |
The tripod turnstiles are very robust products that can function equally well inside and outside buildings. They are particularly well-suited to the needs of access control at leisure centers, stadiums and factories. |
Well-built for increased durability, our tripod turnstiles efficiently control high throughput. Since they can be installed inside or outside buildings, our tripod turnstiles provide unfailing control of occasional user abuse. |
MIAN BENEFITS:
Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space
Non-removable stainless steel arms to prevent vandalism
Durable, corrosion-resistant, heavy-duty mechanism for extended service life
APPLICATION:
As an access-control application, the tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :
Schools, universities and colleges
Office buildings, head offices, administrative sites
Industrial and manufacturing facilities
Sports centers, Cultural or entertainment venues
Ports and harbors
TECHNICAL SPECIFICATIONS:
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: |
1.3mm or 1.7mm |
Finish: |
brushed surface, polishing surface |
Dimension(L*W*H): |
1200mm*280mm*990mm |
Arm material: |
Steel |
Arm length: |
500mm |
Arm diameter: |
38mm |
The maximum tolerance of the pole: |
80Kg |
Working driving force of the pole: |
3Kg |
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. |
Power voltage: |
AC220V±10%, 50Hz±10% |
Work movement: |
Germany technology electromagnetic valve |
Semi-automatic type: |
In-built hydraulic shock absorber |
Main-board voltage: |
12V DC |
Passage Width: |
550mm |
Passing speed: |
30~35 persons/min |
MTBF: |
5 million |
Time of opening / closing: |
0.2 seconds |
The time required to running state after power on: |
5 seconds |
MTBF: |
550mm |
Operation Temperature: |
-10℃ ~ 70℃ |
Relative humidity: |
≤95% not condensed |
Operation environment: |
Indoor/Outdoor |
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: |
CE |
Warranty: |
12 months |
Net weight: |
57KGS |
