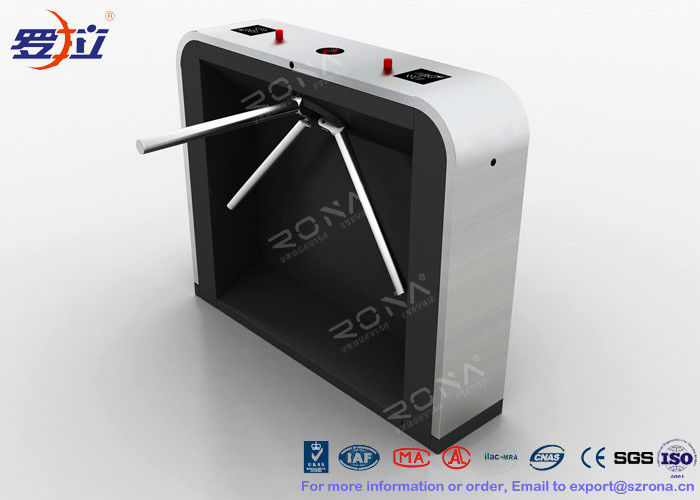

Reliable Easy Tripod Turnstile Gate Solution 30~35 Persons / Min Passing Speed

Reliable Easy Tripod Turnstile Gate Solution 30~35 Persons / Min Passing Speed

turnstile security gate

tripod access system

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF338

Contact Us
Request A Quote
Product Details
Housing Material::
304 Stainless Steel
Thickness::
1.3mm Or 1.7mm
Passage Width::
550mm
Install Place::
Indoor Or Outdoor
Warranty::
One Year
Testing::
5 Million No Fault
Dimensions::
1200L*280W*990H Mm
Passing Speed::
30~35 Persons/min
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden case package
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Reliable and easy Tripod Turnstile Gate solution for secure entrance control with 304 Stainless Steel



TRIPOD TURNSTILES:

Tripod turnstiles offer dissuasive automated access control for sites with heavy use. This is simple, economical and compact equipment.

The tripod turnstiles are designed for an economic and dissuasive access control and can incorporate access control devices such as: card readers, coin/token acceptors, ticketing systems, etc .
Their mechanical design is strong and reliable. They exist in different configurations to suit all architectural requirements in terms of pedestrian access control.
The tripod turnstile includes an anti-panic device, which, in case of power failure, automatically unlocks the arm, which instantaneously drops. The access corridor is then fully free of any obstruction, thus allowing uninterrupted safe passage.
The repositioning of the arm is done manually when power supply is restored.
The tripod turnstiles can be installed indoors or outdoors, alone or in combination with others.
The tripod turnstiles are very robust products that can function equally well inside and outside buildings. They are particularly well-suited to the needs of access control at leisure centers, stadiums and factories.
Well-built for increased durability, our tripod turnstiles efficiently control high throughput. Since they can be installed inside or outside buildings, our tripod turnstiles provide unfailing control of occasional user abuse.



MIAN BENEFITS:

  • Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space

  • Non-removable stainless steel arms to prevent vandalism

  • Durable, corrosion-resistant, heavy-duty mechanism for extended service life

APPLICATION:

As an access-control application, the tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :

  • Schools, universities and colleges

  • Office buildings, head offices, administrative sites

  • Industrial and manufacturing facilities

  • Sports centers, Cultural or entertainment venues

  • Ports and harbors

TECHNICAL SPECIFICATIONS:

Framework:

304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)

Thickness of ply:

1.3mm or 1.7mm

Finish:

brushed surface, polishing surface

Dimension(L*W*H):

1200mm*280mm*990mm

Arm material:

Steel

Arm length:

500mm

Arm diameter:

38mm

The maximum tolerance of the pole:

80Kg

Working driving force of the pole:

3Kg

Read facilities mounting:

may be mounted on the surface of turnstile, or flush mounted, or rack mounting.

Power voltage:

AC220V±10%, 50Hz±10%

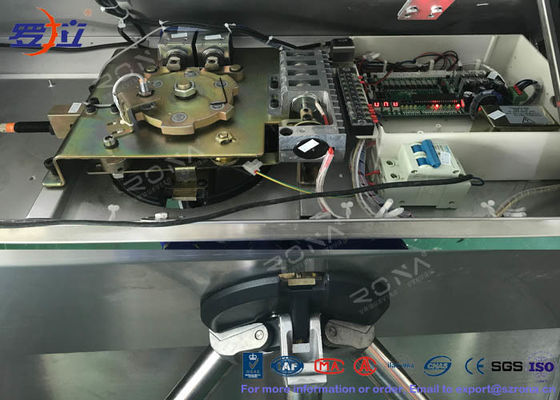

Work movement:

Germany technology electromagnetic valve

Semi-automatic type:

In-built hydraulic shock absorber

Main-board voltage:

12V DC

Passage Width:

550mm

Passing speed:

30~35 persons/min

MTBF:

5 million

Time of opening / closing:

0.2 seconds

The time required to running state after power on:

5 seconds

MTBF:

550mm

Operation Temperature:

-10℃ ~ 70℃

Relative humidity:

≤95% not condensed

Operation environment:

Indoor/Outdoor

Input port:

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port:

RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet

Certification:

CE

Warranty:

12 months

Net weight:

49KGS
