|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF6008-1 / RNCF6008-1S|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, T/T, L/C|
|Supply Ability:||2000 units Per Month|
|Material:||304 Stainless Steel||Working Voltage:||AC220±10%V|
|Size:||1200mm (L) * 300mm (W) * 1000mm (H)||Drive Motor:||DC24V Brush Motor|
|Direction Plate:||Arrow & Cross||Normal Running Life:||More Than 5 Millions|
|Passage Width: 550mm:||550MM||Waterproofing Grade:||IP54|
|Flap Colour:||Face Rwhite/red /green /black||Brand Name:||RONA|

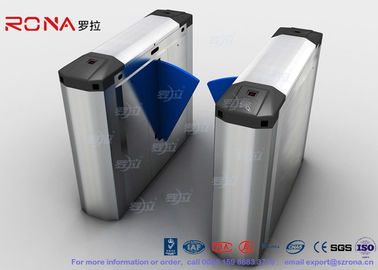

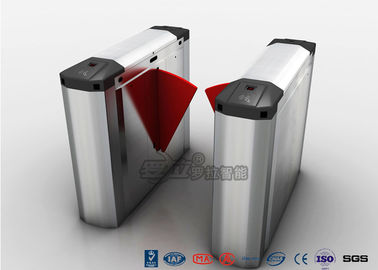

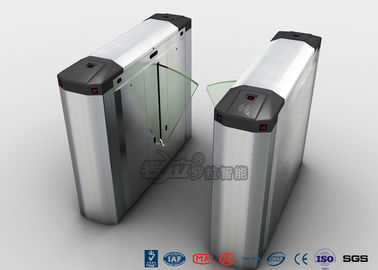

Turnkey Gate Control & Security System with Flap With Token And Reader
Flap barrier gates:
key words: flap barrier, flap turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, speed gate, access control system; perimeter protection barrier;
RONA flap barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Feature & Advantages
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
|Cabinet material||Cold rolled steel & aluminum alloy|
|Material of Flap Door||Acrylic plate|
|Housing of thickness||2.0mm|
|Normal Life Span||3 millions times|
|Communication Interface||Standard RS485|
|Transit speed||30-40 persons/min|
|Time for opening or closing||0.5s|
|Starting time after power on||3s|
|Input interface||Dry contact signal or +12Vor pulse signal with width more than100ms DC12V|
|Transit speed||25~32 persons/min|
|Working environment||Indoor / Outdoor (Shelter)|
|Relative humidity||≤95%, no condensation|
Applications of flap barrier gates
High class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
