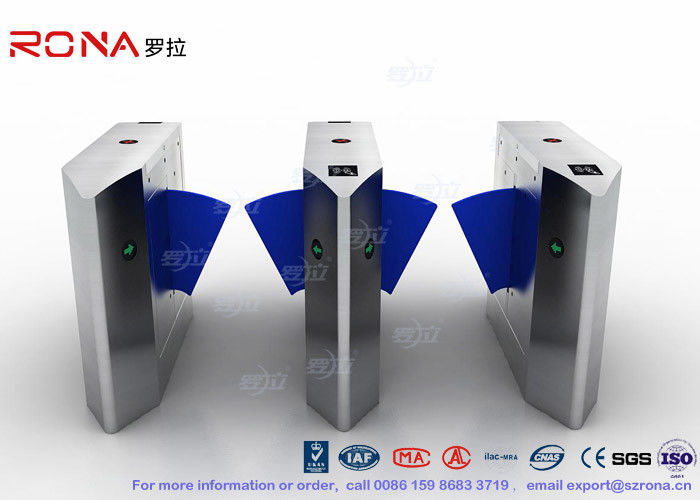

ZK Access Optical Swing Gate Turnstile / Controlled Access Flap Berrier System

ZK Access Optical Swing Gate Turnstile / Controlled Access Flap Berrier System

electronic turnstiles

security turnstiles

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF5088 / RNCF5088S

Contact Us
Request A Quote
Product Details
304 Stainless Steel
Transit Speed::
25~30 Persons/min
1400mm (L) * 300mm (W) * 990mm (H)
Drive Motor:
Stepper Motor
Working Environment:
Direction Plate:
Arrow & Cross
Single Or Bi-directional
Turnstile Warranty:
1 Years
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description

ZKAccess Barrier Optical Turnstiles - Flap or Wing | Controlled Access Flap Berrier System



Flap barrier gates:
Integrating mechanism, electronics and micro-processor advanced technologies.The flap barrier is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.


Flap turnstile designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated


This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out .


Technical parameters

Technical Parameter
Pass data
Arm length(standard) mm 600
Pass speed people/minute 30-35
Arm rotation angle degree 180
Main motor data
Drive motor / Brush motor
Input voltage / AC220±10% V,50HZ
Driving motor / DC motor 50W/24V
Other data
MCBF times 5million
Motor speed R/M 1600
Gate open/close time gap second 0.5-3s(adjustable)

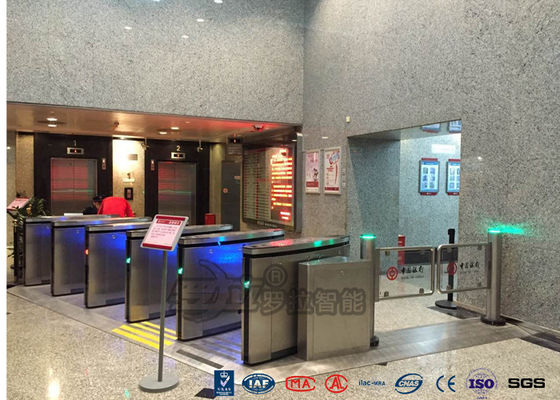

ZK Access Optical Swing Gate Turnstile / Controlled Access Flap Berrier System 0
Feature & Advantages

1. High compatibility .Can be linked with a variety of card-reading device
2. Can be connected by external switch button or remote control, to realize one or bi-directon access control
3. With the automatic reset function, The swing arm closes automatically within certain delay time (3 s, 5 s, 10 s, 60 s for optional)
4. Mechanical anti-clamp: Reasonable deisgin with mechanical anti-clamp function,system will automatically detect and stop running when be impeded by human body or other objects , swing arm force is small, it won't hurt human or other objects.
5. Rigorous anti-clamp function, has the reasonable logical judgement function
6. Humanized self protection:
A: When turnstile is impeded by human body or other objects, the system will continuously detect 1-5 times (every 5 seconds), if without relieve obstacles, the system automatically stop and be in closed state, under which parts of the devices are in a dormant state, effectively avoid damage the original device. When receive the next effective passing request and automatically back to normal
B: When system fails to detect and reset signals properly (i.e., swing arm hit the box), system automatically detect 1 to 5 times, each time for 5 seconds, if still there is no reset signal, the swing arm automatically return to normal lock status.( Function declarations: even if the reset light accidentally be damaged, system can still be on work to zero the phenomenon of circuit burn or electrical failure.
7. Open and close arm speed can be adjusted within 0.8 2 s, with 16 gear,can freely adjust the speed per acutal situation.
8. Normal open, normal close can be adjusted, which can be controlled by external button or easily implement normally open, normally closed mode switch
9. The arm will drop down automatically to evacuate people in the event of an emergency, such as fire, power failure.
10. High brightness light indicator: Clearly visible in the daytime or under sunshine.
11. Humanized access instructions with flashing green arrow for every authorized passing and extinguishing after passing.(be dark when turnstile is unactivated)
12. Anti-illegal in, anti-intrusion, auto close for reverse direction. anti-clamp,Sound and light alarm
13. Swing arms are adjustable synchronously (double pendulum swing turnsile)

ZK Access Optical Swing Gate Turnstile / Controlled Access Flap Berrier System 1
