|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF H8008-7|
|Minimum Order Quantity:||1 Lane|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Materials:||304# Stainless Steel||Finish:||Brushed Surface/polishing Surface|
|Dimension:||2005mm*195mm*1060mm||Power Voltage:||AC220V±10%, 50Hz±10%|
|Driver Motor:||DC Servo Motor||Passing Speed:||40 Persons/min|
|Passage Width:||600mm~1200mm||Operation Temperature::||-10℃ ~ +70℃|
anti pinch access control speed gates

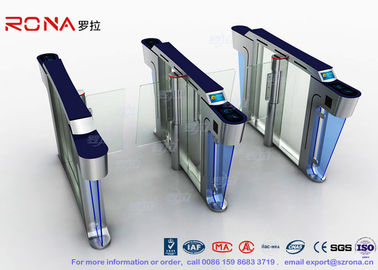

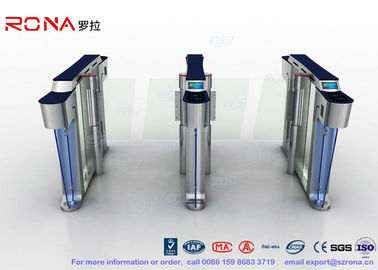

Speed gate Turnstile Access Control System Pedestrian Entry Barriers with CE certification
The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.
As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.
STANDARD FEATURES & FUNCTIONS:
-> The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
-> Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
-> Automatic check fault and alarm prompt function: to convenient for users to maintain.
-> The running status of device can be set up through pressing the built-in small keyboard of the main control board.
-> The device is locked until a valid open signal is received.
-> Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.
-> Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
-> Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).
-> Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
-> LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
-> Remote control and management function: Through the management computer to realize remote control and management.
-> Streamline small footprint design that utilizes shared cabinets for multi-lane applications.
-> Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
-> Extremely fast throughputs.
OPTIONAL & CUSTOMIZED FUNCTIONS:
|Alternative Materials, Finished and Custom Design|
|Infrared sensors reset function|
|Thermostat System Integration|
