Place of Origin: | Chian |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF9088H / RNCF9088HS |
Minimum Order Quantity: | 1 pair |
---|---|
Price: | negotiation |
Packaging Details: | Export Wooden Packing |
Delivery Time: | 7-15 working days |
Supply Ability: | 2000 units Per Month |
Brand Name: | RONA | Working Voltage: | AC220±10%V |
---|---|---|---|
Size: | 1400mm (L) * 300mm (W) * 990mm (H) | Drive Motor: | DC24V Brush Motor |
Working Environment: | Indoor/outdoor | Direction Plate: | Arrow & Cross |
High Light: | electronic turnstiles,security barrier gate |
Removable HID 13.56mhz RFID reader using in flap gates with wheels turnstile barrier gates

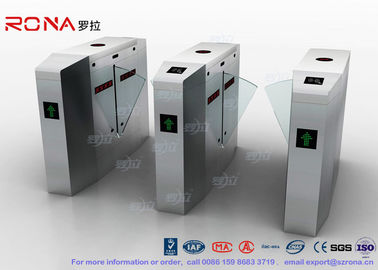

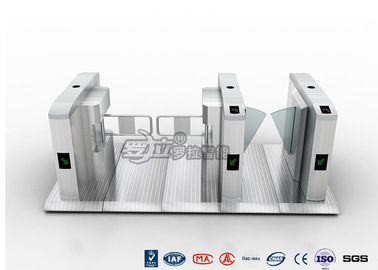

Description of flap gates
Flap Barrier systems provide effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.
1. Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2. Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3. Malfunction self-detection, which is easy for operation and maintenance.
4. Operational mode can be set up through the built-in menu on the control panel.
5. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6. Anti-collision function, the flaps will stay close if not receiving the open signal.
7. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
8. Flaps reset to close position when power resume.
9. Flaps reset to lock position when access time expire.
10. Prevents Invalid/Tailgate/Wrong direction access.
11. LED Array indication for access granted/denied.
12. Compatible with diverse access control devices.
13. Pedestrian flow directions can be single or double directions.
14. RS485 socket is available to connect the computer.
Technical parameters
Model | RNCF 2088 |
Flap length | 245mm |
Lane width | 550mm |
Cabinet material | Cold rolled steel & aluminum alloy |
Material of Flap Door | Acrylic plate |
Housing of thickness | 2.0mm |
Normal Life Span | 3 millions times |
Communication Interface | Standard RS485 |
Transit speed | 30-40 persons/min |
Time for opening or closing | 0.5s |
Starting time after power on | 3s |
Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
Transit speed | 25~32 persons/min |
Working temperature | -10°C~50°C |
Working environment | Indoor / Outdoor (Shelter) |
Relative humidity | ≤95%, no condensation |
Competitive Advantage:
1. For all your inquires about us or our products, we will reply you in detail within 24hours.
2. We have engineers who has the experience of big turnstile engineering projects(more than 10 yars experience) to help you solve all theproblems of technical.
3. Delivery Support:
Monthly capacity in our factories reaches 8,00 sets, while we accept the 1~5-set, we can shipping during 3 days.
Technical Support:
Having gathered a team of hi-tech talent, marketing elite and management talent, we employ 150 staff, including a doctor, a technology expert, 6 senior engineers and 9 development engineers.
After sale support:
Warranty time: 12 months
