IP54 Anti - Breakthrough Flap Turnstile Speed Automatic Gates Barcode System With Bule Light

IP54 Anti - Breakthrough Flap Turnstile Speed Automatic Gates Barcode System With Bule Light

security turnstiles

security barrier gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF H1077 / RNCF H1077S

Contact Us
Request A Quote
Product Details
304 Stainless Steel
1400mm (L) * 300mm (W) * 990mm (H)
Drive Motor:
DC24V Brush Motor
Working Environment:
Passage Width: 550mm:
Waterproofing Grade:
System Waterproofing Grade:
Face Recognition System
Communication Interface:
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description Anti - Breakthrough Flap Barrier Gate Speed Automatic gates with bule light using Barcode system

Flap barrier gates introduce

Smart turnstile (block gate) is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.


This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...


Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);Double motors (suitable for multiple passageways)

Feature & Advantages

  a. elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.

b. Equipped with standard input/output signal interface, can be integrated with all types of access control panel,offering complete entrance control solutions.

c. Malfunction self-detection, which is easy for operation and maintenance.

d. Operational mode can be set up through the built-in menu on the control panel.

e. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.

f. Anti-collision function, the flaps will stay close if not receiving the open signal.

g. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.

h. Flaps reset to close position when power resume.

i. Flaps reset to lock position when access time expire.

j. Prevents Invalid/Tailgate/Wrong direction access.

k. LED Array indication for access granted/denied.

l. Compatible with diverse access control devices.

m. Pedestrian flow directions can be single or double directions.

n. RS485 socket is available to connect the computer.

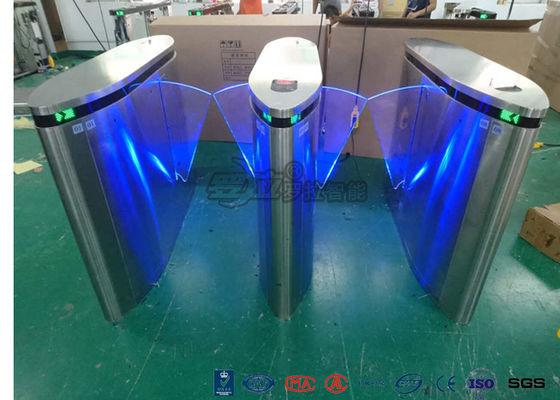

IP54 Anti - Breakthrough Flap Turnstile Speed Automatic Gates Barcode System With Bule Light 0


Technical parameters

Model RNCF F6088 RNCF F6088
Item Single flap barrier Double flap barrier
Power consumption 50W 100W
Housing Size 1400x300x990 mm
Housing material 1.5--2mm, #304 Stainless Steel, Matt finish
Drive motor DC brushless motor
Channel width 550mm
Pass speed 30~40 persons/min.
Power supply 220Vac 50Hz or 110Vac 60Hz
Input interface Switch Volume or 12V Level
Communication interface RS485
Gate open while power off Yes
Working temperature -30°C~+70°C
Working environments Indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF More than 3 millions
Warranty 1 year
Outside packing Plywood box, 1520 x 420 x 1140mm
Pieces per box 1 pcs / box
Gross weight 110KG 130KG


IP54 Anti - Breakthrough Flap Turnstile Speed Automatic Gates Barcode System With Bule Light 1


Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!

IP54 Anti - Breakthrough Flap Turnstile Speed Automatic Gates Barcode System With Bule Light 2
