|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF5088 / RNCF5088S|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, T/T, L/C|
|Supply Ability:||2000 units Per Month|
|Material:||304 Stainless Steel||Transit Speed::||25~30 Persons/min|
|Size:||1400mm (L) * 300mm (W) * 990mm (H)||Drive Motor:||Stepper Motor|
|Working Environment:||Indoor||Direction Plate:||Arrow & Cross|
|Direction:||Single Or Bi-directional||Turnstile Warranty:||1 Years|

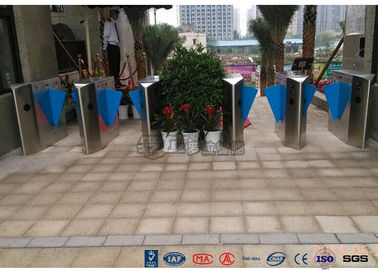

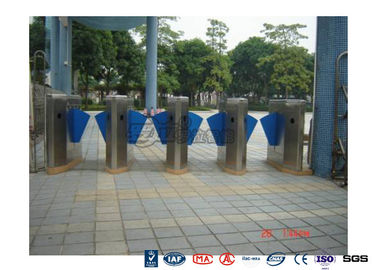

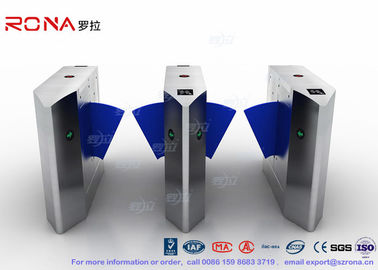

High End Flap Barrier Gate Turnstile Attendance For Entrance Control
Flap barrier gates:
Integrating mechanism, electronics and micro-processor advanced technologies.The flap barrier is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.
Flap turnstile designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated
This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out .
|Arm rotation angle||degree||180|
Main motor data
|Drive motor||/||Brush motor|
|Input voltage||/||AC220±10% V,50HZ|
|Driving motor||/||DC motor 50W/24V|
|Gate open/close time gap||second||0.5-3s(adjustable)|
Feature & Advantages
1. High compatibility .Can be linked with a variety of card-reading device
2. Can be connected by external switch button or remote control, to realize one or bi-directon access control
3. With the automatic reset function, The swing arm closes automatically within certain delay time (3 s, 5 s, 10 s, 60 s for optional)
4. Mechanical anti-clamp: Reasonable deisgin with mechanical anti-clamp function,system will automatically detect and stop running when be impeded by human body or other objects , swing arm force is small, it won't hurt human or other objects.
5. Rigorous anti-clamp function, has the reasonable logical judgement function
6. Humanized self protection:
A: When turnstile is impeded by human body or other objects, the system will continuously detect 1-5 times (every 5 seconds), if without relieve obstacles, the system automatically stop and be in closed state, under which parts of the devices are in a dormant state, effectively avoid damage the original device. When receive the next effective passing request and automatically back to normal
B: When system fails to detect and reset signals properly (i.e., swing arm hit the box), system automatically detect 1 to 5 times, each time for 5 seconds, if still there is no reset signal, the swing arm automatically return to normal lock status.( Function declarations: even if the reset light accidentally be damaged, system can still be on work to zero the phenomenon of circuit burn or electrical failure.
7. Open and close arm speed can be adjusted within 0.8 2 s, with 16 gear,can freely adjust the speed per acutal situation.
8. Normal open, normal close can be adjusted, which can be controlled by external button or easily implement normally open, normally closed mode switch
9. The arm will drop down automatically to evacuate people in the event of an emergency, such as fire, power failure.
10. High brightness light indicator: Clearly visible in the daytime or under sunshine.
11. Humanized access instructions with flashing green arrow for every authorized passing and extinguishing after passing.(be dark when turnstile is unactivated)
12. Anti-illegal in, anti-intrusion, auto close for reverse direction. anti-clamp,Sound and light alarm
13. Swing arms are adjustable synchronously (double pendulum swing turnsile)
