Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF7088 / RNCF7088S

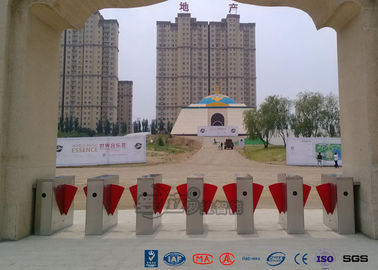

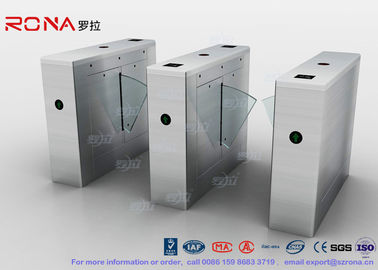

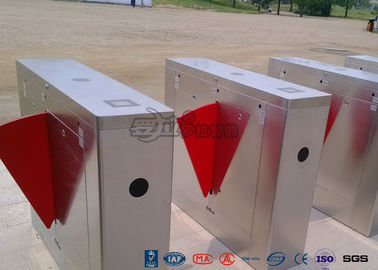

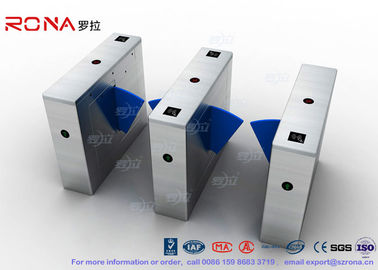

Galvanized Steel Flap Barrier Gate , Intelligent Flap Bi - Directional Turnstile Mechanism
Flap barrier gates:
Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote.
Feature & Advantages
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
Technical parameters
| Model No. | RNCF 1088 | RNCF 3088 | RNCF 6088 | RNCF 9088 |
| Size(mm) | 1410x340x1005 | 1400x350x980 | 1400x280x980 | 1400x280x980 |
| Unlock time | 0.2s | 0.2s | 0.2S | 0.2S |
| Pass rate | 35 person/min | 35 person/min | 35 person/min | 35 person/min |
| Pass width | ≤550mm | ≤600mm | ≤550mm | ≤550mm |
| input | 100V~240V | 100V~240V | 100V~240V | 100V~240V |
| Motor voltage | 24V | 24V | 24V | 24V |
| environment | -25~+70 | -25~+70 | -25~+70 | -25~+70 |
| Power consumption | 35w | 35w | 35W | 35W |
| input | 12v dry contact | 12v dry contact | 12v level signal or Pulse Wide>100ms | -25~+70 |
