Cold Rolled Steel Luxury Flap Barrier Gate , Pedestrian Access Control Turnstile

Cold Rolled Steel Luxury Flap Barrier Gate , Pedestrian Access Control Turnstile

electronic turnstiles

security turnstiles

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF9088 / RNCF9088S

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Size:
1400mm (L) * 300mm (W) * 990mm (H)
Brand Name:
RONA
Normal Running Life:
More Than 3 Millions
Waterproofing Grade:
IP54
System Waterproofing Grade:
Face Recognition System
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description

Cold Rolled Steel Luxury Flap Barrier Gate , Access Control Turnstile







Introduce of the flap barrier gates

Access control flap turnstile is an upgraded products from tripod turnstile and swing barrier. It has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.




Technical parameters

Model RNCF 9088
Flap length 245mm
Lane width 550mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Acrylic plate
Housing of thickness 2.0mm
Normal Life Span 3 millions times
Communication Interface Standard RS485
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation

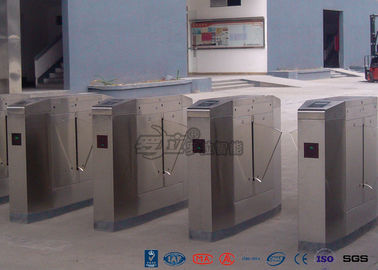

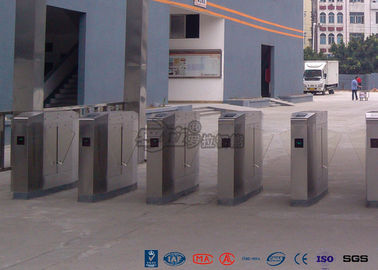

Cold Rolled Steel Luxury Flap Barrier Gate , Pedestrian Access Control Turnstile 0

FAQ



1. How long have you been engaged in this industry?

Founded in 2004 in China's Shenzhen, RONA is now the most eading player in the intelligent customization turnstile industry.



2. Do you have both manufacturing and designing capabilities at the same time?

Yes, we have a 4 talented designing and development team while 100% share-holding production facilities guarantee that both the quality and costs are under our complete control.



3. What's your maximum output or production capability?

We can produce and supply more than 500 different types and styles of turnstiles every month.



4. What's the lead time if I place the order now?

The lead time depends on the quantity and complexity of the machines to be ordered, for example, if less than 10 sets, we can deliver within 3-7days; if 10-20sets, we can deliver 10-15days;



6. What is your MOQ?

Normally 1 sets at least.



7. What are your payment terms?

We can accept T/T, L/C, or  but in the beginning T/T or cash is the only acceptable option particularly for those specially designed/customized machine. If T/T, at least 30-50% deposit shall be needed while the balance to be paid before or right after the shipment.



8. What's the loading port?

Our loading port is Shenzhen one of the busiest and largest sea port in the world, which means the lowest and cheapest shipping costs are always possible.



9. Do you provide quality guarantee?

Most reliable and guaranteed quality is the cornerstone where our company stands all the time. We normally provide 1 year quality guarantee for different types of hardware.



10. How about your customer services? Will on-site consulting and help be possible in case of need?

We make every effort to support its customers with expert know-how from the first conceptual discussion to product servicing. Our services provide you with answers to any question and incorporate a help desk and support service, spare part and repair handling, on-the-spot service and many additional types of assistance.

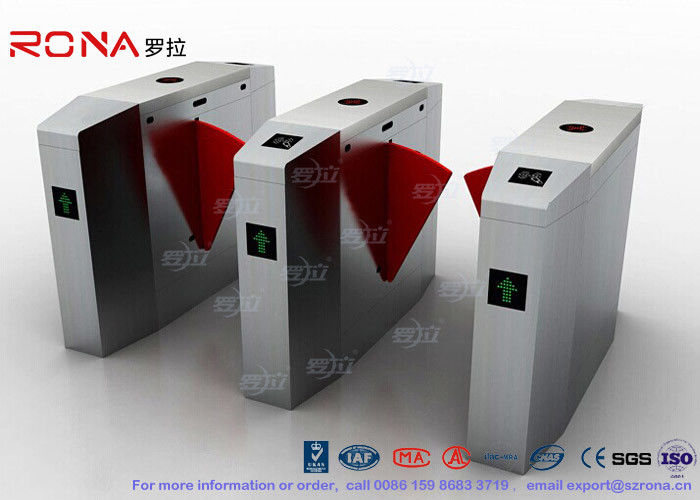

Cold Rolled Steel Luxury Flap Barrier Gate , Pedestrian Access Control Turnstile 1
