Indoor / Outdoor Flap Barrier Turnstile Waist Height Turnstile Sliding High Speed

Indoor / Outdoor Flap Barrier Turnstile Waist Height Turnstile Sliding High Speed

electronic turnstiles

security turnstiles

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF F6088

Contact Us
Request A Quote
Product Details
304 Stainless Steel
Working Voltage:
1500mm (L) * 300mm (W) * 990mm (H)
Drive Motor:
Stepping Motor
Working Environment:
Turnstile Frequency::
5 Million
Net Weight::
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Supply Ability
2000 units Per Month
Product Description

Indoor / Outdoor Flap Waist Height Turnstile Sliding High Speed



1. Big highlight LED indicates dynamic traffic state and the direction of traffic

2. Normally open or normally closed mode flexible choice,which effectively ease the traffic pressure

3. Gate switching speed can be adjusted according to the traffic, to improve equipment efficiency

4. Read card memory or card with no memory.

5. It has functions of breakdown self-checking and alarm promptly, which is convenient for customer use and maintenance

6. We Import 1.5 mm or 304 stainless steel and A3 paint processing, independently design research , to make it's appearance beautiful and easy. the card window USES is made of toughened glass, effectively to prevent the scratching.

7. With automatic reset function. When the pedestrian won't go through within the prescribed period of time , the system will automatically cancel it, and the passage of time can be set.

8. The brake Provides multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, like magnetic stripe, EM ID, IC, 1, TI, and support a variety of data format,like WIEGRAND 26, 34, WIEGRAND WIEGRAND 66 It also can connect the bar code reader, fingerprint recognizer, palm print recognizer, with good compatibility, easy system integration.



Technical parameters

size 1500*300*990mm
Access speed Normally closed mode: 30 / min Normally open mode: 40 / min
material Quality 304 stainless steel
direction the arrow indicator
Power Drive Motor drive; reset: automatic reset;
Input voltage 220VAC 220 ±10%
The environment temperature Minus 30 - above 60 degrees Celsius zero
The main function Control the flow of people
Brake machine control The whole domestic visual voice control panel
Production Process Full CNC laser cutting machine
Service life more than 3 million times
The pedestrian width 550mm
rotation model High-performance electromagnetic photoelectric sensor
Movement type Proximity switch location
Control signal relay signal input

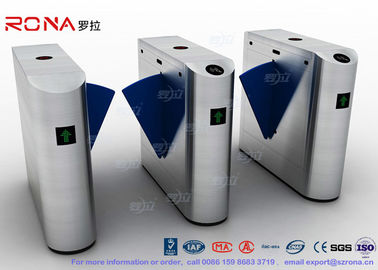

Indoor / Outdoor Flap Barrier Turnstile Waist Height Turnstile Sliding High Speed 0



Functions and features of access control flap turnstile:

◊ Smart card reader compatible with a variety of card such as IC and ID card.


◊ can be expanded to automatic identification system, realizing function of access control,

Pedestrian flow control, attendance check or fare collection.


◊ Equipped with international standard electrical interface, can be easily integrated with other

R/W device, also can be controlled and management through remote supervision computer


◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating

Attempts, together with anti-strike function to protect pedestrian


access control flap turnstile


◊ LED gate direction indicator that displays the current operational state to pedestrian. Green

Arrow for entry free, Red Cross for passage locked.


◊ Can open the turnstile by two input signals (signals can be input by access controller, button or

Other equipments)


◊ Provide audible sound prompt and information display function.


◊ The flaps will open automatically during power interruption and recover N/C mode after power on (optional)


◊ counting function. Flap closes after passing N pedestrians continuously by swiping card N times

Correspondingly (N<=16) (optional)


◊ Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction

After reading the card. (optional)


access control flap turnstile


Indoor / Outdoor Flap Barrier Turnstile Waist Height Turnstile Sliding High Speed 1
