Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF1088 / RNCF1088S
Feature & Advantages
a. elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
b. Equipped with standard input/output signal interface, can be integrated with all types of access control panel,offering complete entrance control solutions.
c. Malfunction self-detection, which is easy for operation and maintenance.
d. Operational mode can be set up through the built-in menu on the control panel.
e. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
f. Anti-collision function, the flaps will stay close if not receiving the open signal.
g. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
h. Flaps reset to close position when power resume.
i. Flaps reset to lock position when access time expire.
j. Prevents Invalid/Tailgate/Wrong direction access.
k. LED Array indication for access granted/denied.
l. Compatible with diverse access control devices.
m. Pedestrian flow directions can be single or double directions.
n. RS485 socket is available to connect the computer.

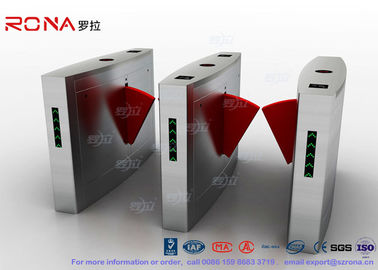

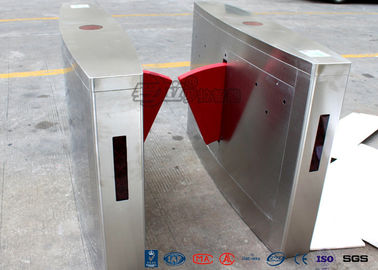

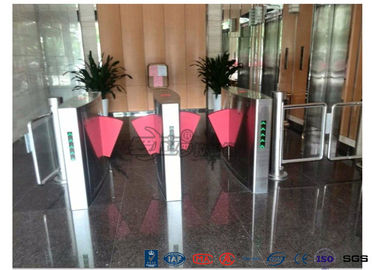

Flap barrier gates introduce
Smart turnstile (block gate) is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.)；Double motors (suitable for multiple passageways)
Parameter of flap barrier gates
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating temperature | -10°C--70°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 285mm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
