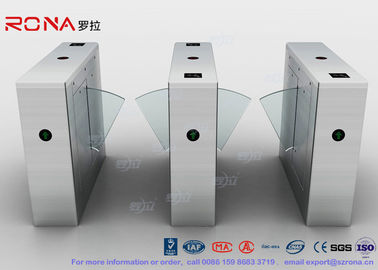

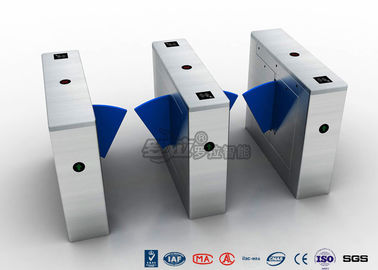

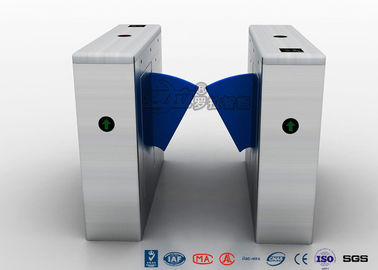

Multi - Lane Half Height Turnstiles , Optical Flap Barrier Access Control Turnstile

Multi - Lane Half Height Turnstiles , Optical Flap Barrier Access Control Turnstile

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF7088 / RNCF7088S

Contact Us
Request A Quote
Product Details
Materials::
304# Stainless Steel
Size (L*W*H):
1400mm*300mm*990mm
Material Of Flap:
Acrylic Flap Available Or Red Soft Flapper Optional
Passage Width:
550mm
Mean Time To Failure:
5 000 000
Communications Port::
RS232 / RS485
Input Port::
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Working Environment::
Indoor/Outdoor (with Rain-tent Cover)
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Multi - Lane Half Height Turnstiles , Optical Flap Barrier Access Control Turnstile





KEY WORDS:

Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.



PRODUCT CLASSIFICATIONS:

-> Single-core mechanism: RNCF7088

The flap barrier only equipped with single-core in the cabinet , usually be used in single lane or multi-lane applications.



->Dual-core mechanism: RNCF7088S

The flap barrier equipped with independent dual-core in the cabinet , usually be used in multi-lane applications.


SPECIFICATIONS:

Model

RNCF7088

RNCF7088S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.3mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1400mm*300mm*990mm

Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Brush motor

Main-board voltage

12V DC

In-built Infrared

3 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



STANDARD FEATURES & FUNCTIONS:

  • (1). The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

  • (2). Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

  • (3). Automatic check fault and alarm prompt function: to convenient for users to maintain and use.

  • (4). The running status of device can be set up through pressing the built-in small keyboard of the main control board.

  • (5). Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

  • (6). The device is locked until a valid open signal is received.

  • (7). Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.

  • (8). Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.

  • (9). Reset automatically function: “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s) by changing parameter of main control board). Also when power off, it will be opened the gates automatically. When the power is on again, the gates can also close automatically.

  • (10). LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

  • (11). Remote control and management function: Through the management computer to realize remote control and management.

  • (12). Streamline design that utilizes shared cabinets for multi-lane applications.

  • (13). With normally open & normally closed working mode.

PROJECTS:

Multi - Lane Half Height Turnstiles , Optical Flap Barrier Access Control Turnstile 0


WORKSHOP:
Multi - Lane Half Height Turnstiles , Optical Flap Barrier Access Control Turnstile 1
