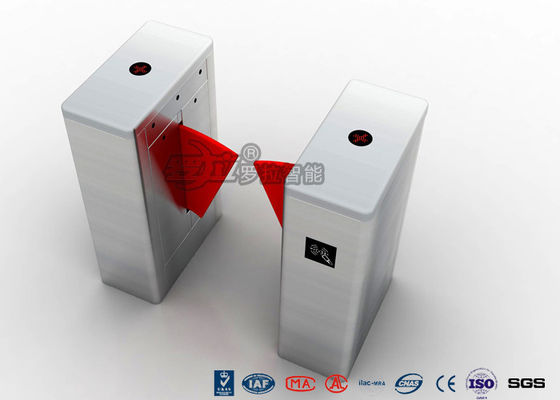

Flap Barrier Gate Half Height Turnstiles Entrance With Red Soft Flapper

Flap Barrier Gate Half Height Turnstiles Entrance With Red Soft Flapper

security turnstiles

security barrier gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
304# Stainless Steel
Size (L*W*H):
Material Of Flap:
Acrylic Flap Available Or Red Soft Flapper Optional
Passage Width:
Mean Time To Failure:
5 000 000
Communications Port::
RS232 / RS485
Input Port::
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Working Environment::
Indoor/Outdoor (with Rain-tent Cover)
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Flap Barrier Gate Half Height Turnstiles Entrance With Red Soft Flapper


Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.



-> Single-core mechanism: RNCF4088

The flap barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.






Single-core mechanism



304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply



brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)


Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length


The inductive card reader dimension

equipped with the standard mounting brackets or tailor.


Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Brush motor

Main-board voltage

12V DC

In-built Infrared

3 pairs/lane

Passing speed

30 persons/min

Passage Width


Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet


12 months


All-around Personal Safety Protection
The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power
failure, etc.
Infrared and mechanical anti-clamping functions provide double protection.
The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the
machine and the pedestrian effectively.
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current
protective device to effectively avoid electric shocks.

Intelligent & Advanced Passageway Security Concept
The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the
behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating,
and give out alarms through sound, light, etc. The turnstile can be also linked with other security systems.

Strong & Stable Control Core
High-quality DC brushless motor is configured and advanced servo control system is carried to truly achieve precise
control, stable performance and maintenance-free.
Lossless mechanism structure based on German technology is adopted to ensure long lifespan.

Dimension, Material & Surface Finish
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Lane width: 1200mm is at the maximum, but the lane depth may be changed accordingly.
Material of the cabinet: 304 / 316 grade stainless steel.
Material of the swing gate: tempered glass / organic glass / polycarbonate, and color can be customized.
Surface finish of the cabinet: satin finish / polishing / frosted finish / electroplating / baking finish.

System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.

Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
