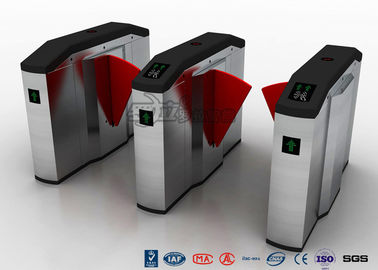

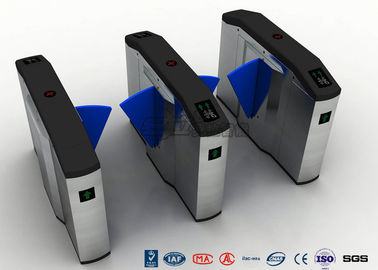

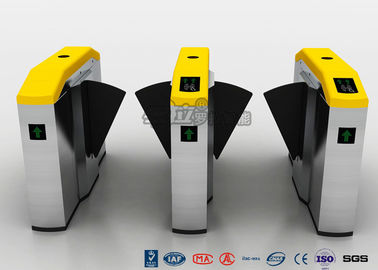

Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier

Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier

  • Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier
  • Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier
  • Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier
  • Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier
Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF H3088 / RNCF H3088S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Lane
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Materials:: 304# Stainless Steel Size (L*W*H): 1400mm*280mm*990mm
Material Of Flap: Acrylic Flap Available Or Red Soft Flapper Passage Width: 550mm
Mean Time To Failure: 5 000 000 Input Port:: Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
High Light:

security turnstiles

,

security barrier gate

Safety Flap Barrier Gate Half Height Pedestrian Turnstile Gate 550mm Office Flap Wing Barrier



KEY WORDS:

Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.



PRODUCT CLASSIFICATIONS:

-> Single-core mechanism: RNCF H3088

The flap barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.



->Dual-core mechanism: RNCF H3088S

The flap barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



SPECIFICATIONS:



Model

RNCF H3088

RNCF H3088S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1400mm*280mm*990mm (default)

Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Stepper motor

Main-board voltage

12V DC

In-built Infrared

7 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



Functions and features
1. a compact electro-mechanical design with unique drive and a self-lock mechanism
2. automatic detection for malfunction
3. input interface for dry contact and switch signal connection
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access
