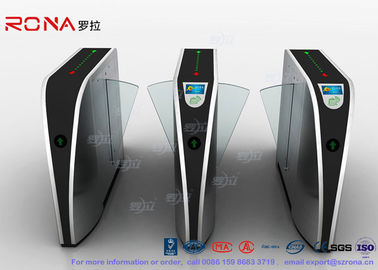

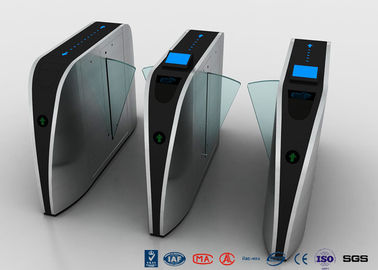

Optical Controlled Access Flap Turnstile Barrier Gate Standard Electric For Office

Optical Controlled Access Flap Turnstile Barrier Gate Standard Electric For Office

security turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF8088H / RNCF8088HS

Contact Us
Request A Quote
Product Details
Materials::
304# Stainless Steel
Size (L*W*H):
1600mm*300mm*1020mm
Material Of Flap:
Acrylic Flap Available Or Red Soft Flapper
Passage Width:
550mm
Mean Time To Failure:
5 000 000
Communications Port::
RS232 / RS485
Input Port::
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Working Environment::
Indoor/Outdoor (with Rain-tent Cover)
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Controlled Access Flap Barrier Turnstile Standard Electric For Office





KEY WORDS:

Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.



PRODUCT CLASSIFICATIONS:

-> Single-core mechanism: RNCF8088H

The flap barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.



->Dual-core mechanism: RNCF8088HS

The flap barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



PRODUCT DESCRIPTIONS:
The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.


The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.


SPECIFICATIONS:

Model

RNCF8088H

RNCF8088HS

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1600mm*300mm*1020mm (default)

Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC BRUSH MOTOR

Main-board voltage

12V DC

In-built Infrared

7 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.



PROJECTS:

Optical Controlled Access Flap Turnstile Barrier Gate Standard Electric For Office 0

WORKSHOP:
Optical Controlled Access Flap Turnstile Barrier Gate Standard Electric For Office 1

EXHIBITION:
304 Stainless Steel Tripod Turnstile Gate with Biometric Recognition System
