| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF F6088 / RNCF F6088S |
| Minimum Order Quantity: | 1 Lane |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Materials:: | 304# Stainless Steel | Size (L*W*H): | 1200mm*300mm*990mm |
|---|---|---|---|
| Material Of Flap: | Acrylic Flap Available Or Red Soft Flapper | Passage Width: | 550mm |
| Mean Time To Failure: | 5 000 000 | Communications Port:: | RS232 / RS485 |
| Input Port:: | Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal | Working Environment:: | Indoor/Outdoor (with Rain-tent Cover) |
| High Light: | security turnstiles,security barrier gate |
||
PRODUCT CLASSIFICATIONS:

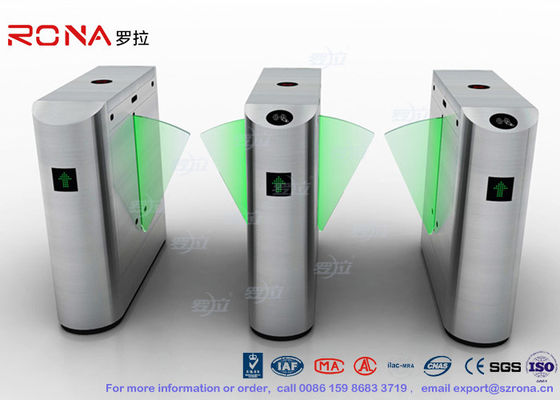

-> Single-core mechanism: RNCF F6088
The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF F6088S
The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.
SPECIFICATIONS:
|
Model |
RNCF F6088 |
RNCF F6088S |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
|
Thickness of ply |
1.3mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1200mm*300mm*990mm (default) |
|
|
Material of flap |
different color Acrylic flap available or Red Soft flapper optional |
|
|
Stretching-out flap length |
230~235mm |
|
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC Brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
5 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
|
Warranty |
12 months |
|
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
KEY WORDS:
Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.
