Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF F6088 / RNCF F6088S

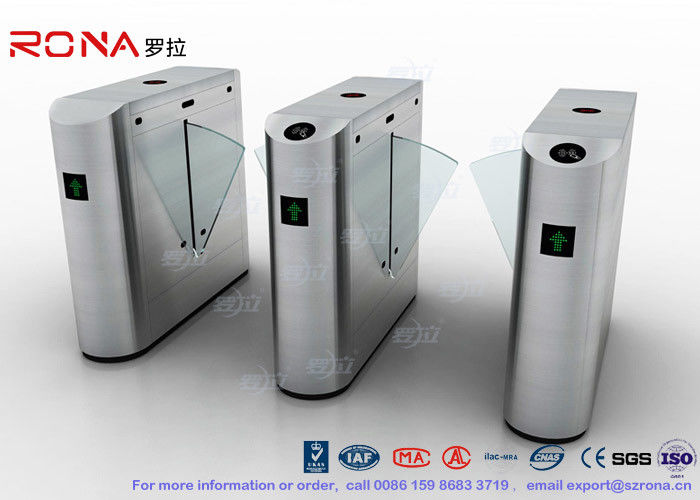

RS485 Retractable Acrylic Flap Barrier Gate Half Height For Pedestrian Access
PRODUCT CLASSIFICATIONS:
-> Single-core mechanism: RNCF F6088
The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF F6088S
The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.
PRODUCT DESCRIPTIONS:
The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
SPECIFICATIONS:
|
Model |
RNCF F6088 |
RNCF F6088S |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
|
Thickness of ply |
1.3mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1200mm*300mm*1020mm (default) |
|
|
Material of flap |
different color Acrylic flap available or Red Soft flapper optional |
|
|
Stretching-out flap length |
230~235mm |
|
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC Brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
5 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
|
Warranty |
12 months |
|
Flap Turnstile Functions& Features
1. Available in single walkway or bi-directional passage. Both directions can be set as controlled mode or free mode.
2. Self-recovery function: The machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default, adjustable by software).
3. Multi-alarm function: When arms are pushed by force illegally, alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
4. Emergency escape function: The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
5. Smart card reader compatible with a variety of card such as IC and ID card.
6. Can be expanded to automatic identification system, realizing function to access control,
Pedestrian flow control, attendance check or fare collection.
7. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer.
8. Control panel with count and LED digital function.
9. Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.
