Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF H8008-5- non standard |
Minimum Order Quantity: | 1 Lane |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Materials: | 304 Stainless Steel | Finish: | Brushed Surface/polishing Surface |
---|---|---|---|
Dimension: | Φ141mm*H1005mm | Power Voltage: | AC220V±10%, 50Hz±10% |
Passing Speed: | 40 Persons/min | Passage Width: | 600mm |
High Light: | fastlane turnstiles,access control barriers |

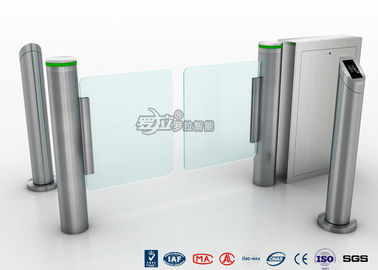

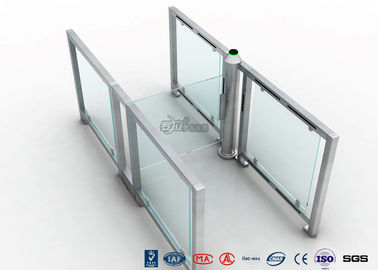

Visitor Entry Access Control Turnstiles , Handicap Pedestrain Luxury Security Swing Gate
PRODUCT DESCRIPTIONS of luxury speed gates:
luxury speed gates(RONA) Appearance (304) stainless steel plate stamping molding,nice shape,rust-proof and durable.Besides foreign standard electrical interface,bar code,ID card,IC card reader can be integrated in the equipment.
They are used most commonly in, airports, museums and office lobbies, mansion
STANDARD FEATURES & FUNCTIONS:
1. Fault self-test and alarm functions,convenient user maintenance and using.
2. Via the control board Built in a small dish,Programmable devices running status
3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4. Break into protection function, when the gate signal is not received, the arm automatically locked
5. Swing arm synchronization can be adjustable(for the double swing condition)
6. With automatic reset function, after the gate opening, within a specified period of time not pass,the system will automatically cancel the user's access Permissions
7. Adjustable normally open or normally closed, in order to meet the requirements of different venues
8. Relative with a variety of reader device attached,working when receive relay switch signal
9. Unidirectional or bidirectional
10. Remote control and management by the management computer
11. Delay automatic reset, after 3 seconds to turn on automatic reset standard
12. Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
13. Sound (light) alarm function, including illegal intrusion alarm, (reverse into closing), etc.
14. Counting function (optional)
15. Pinch function (bridge type four pairs of infrared optional)
16. Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)
17. Voice output, user-friendly prompt the correct pass (optional)
SPECIFICATIONS:
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
Thickness of ply |
1.7mm |
Finish |
brushed surface, polishing surface |
Shell's size (L*W*H) |
Φ141mm*H1005mm (default) |
Swing arm material |
Tempered glass or Acrylic (optional) |
Stretching out swing length |
260mm~600mm |
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
Machine center |
Germany technological motor |
Power voltage |
AC220V±10%, 50Hz±10% |
Driver motor |
DC36 servo motor |
Main-board voltage |
12V DC |
In-built Infrared |
6 pairs/passageway |
Passing speed in normally open mode |
50 persons/min |
Passing speed in normally closed mode |
40 persons/min |
Passage Width |
600mm |
Swing arm transmission angle |
180° |
Swinging direction |
unidirectional or bi-directional |
Opening / closing time |
0.1 seconds |
The time required to running state after power on |
3 seconds |
Automatic reset time after the failure |
1 seconds |
Mean time to failure |
min. 5 000 000 |
Operation temperature |
-10℃ ~ +70℃ |
Relative humidity |
less than 95% not condensed |
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
Input port |
relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
Communications port |
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
APPLICATIONS:
Typical areas of application are: Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums and Retail outlets etc.
