Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF10238-2

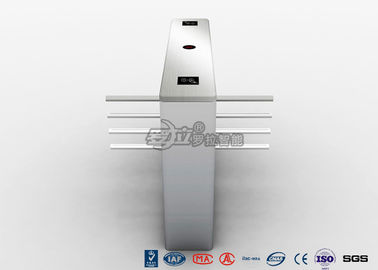

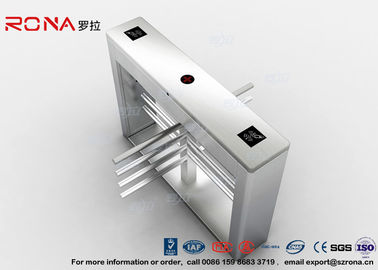

304SUS Anto gates barrier gate waist height turnstile Automatic Road Traffic controlled access turnstile entrance gates
Product Description of the waist height turnstile
Waist-height turnstile is a controlling device which is designed to manage the access control and passenger flow.It is widely used in gymnasium,tourist attraction,business building and so on,and is normally installed in the supervision area.It can satisfy different controlling requirements,and can also connect with control devices such as card readers,ticket dispensers,etc.
Technical parameters
| Technical parameters | |
| Material | 304 Stainless Steel |
| Specification | 1400*280*1000mm |
| Drive motor | DC 24V brush motor |
| Length of the arm | 450mm |
| Pass direction | one or bi-directional |
| Work environment | Indoor or Outdoor |
| Work temperature | -10°C~70°C |
| Relative humidity | ≤90%, no condensation |
| Time of opening/closing | 0.2S |
| Transit speed | 40 People/minute normal open , 25-30 people/minute normal close |
| Reset time after break down | 10s |
| Normal work life | 3000000 times |
| Communication interface | RS485 |
| Input interface | 12V pulse signal with pulse width >100ms, drive current >10mA |
Features&Function
| 1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode. | |
| 2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software). | |
| 3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software). | |
| 4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. | |
| 5.Smart card reader compatible with a variety of card such as IC and ID card. | |
|
6.Can be expanded to automatic identification system,realizing function to access control, pedestrian flow control,attendance check or fare collection. |
|
| 7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer. | |
| 8.Control panel with count and LED digital function. | |
| 9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass. |
