|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF H8008-1|
|Minimum Order Quantity:||1 Lane|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Materials:||304# Stainless Steel||Finish:||Brushed Surface/polishing Surface|
|Dimension:||1600mm*160mm*1000mm||Power Voltage:||AC220V±10%, 50Hz±10%|
|Driver Motor:||DC Servo Motor||Passing Speed:||40 Persons/min|
|Passage Width:||600mm~1200mm||Operation Temperature::||-10℃ ~ +70℃|
access control barriers

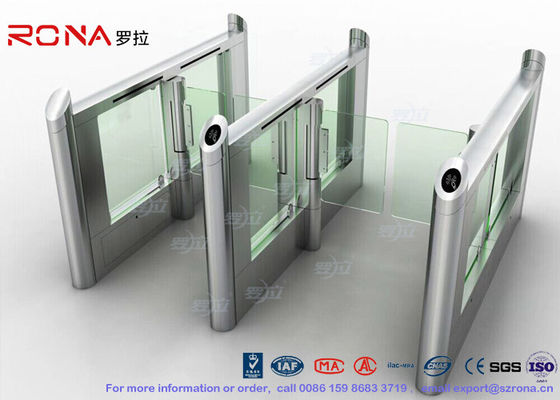

Stylish Optical Speed Gate Turnstile Bi - Directional Pedestrian Queuing Systems Entry Barriers
The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.
|Framework||304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)|
|Thickness of ply||1.7mm|
|Finish||brushed surface, polishing surface|
|Shell's size (L*W*H)||1600mm*160mm*1000mm (default)|
|Swing arm material||Tempered glass or Acrylic (optional)|
|Stretching out swing length||260mm~600mm|
|The inductive card reader dimension||equipped with the standard mounting brackets or tailor.|
|Machine center||Germany technological motor|
|Power voltage||AC220V±10%, 50Hz±10%|
|Driver motor||DC36 servo motor|
|Main-board voltage||12V DC|
|In-built Infrared||6 pairs/passageway|
|Passing speed in normally open mode||50 persons/min|
|Passing speed in normally closed mode||40 persons/min|
|Passage Width||600mm ~1200mm|
|Swing arm transmission angle||180°|
|Swinging direction||unidirectional or bi-directional|
|Opening / closing time||0.1 seconds|
|The time required to running state after power on||3 seconds|
|Automatic reset time after the failure||1 seconds|
|Mean time to failure||min. 5 000 000|
|Operation temperature||-10℃ ~ +70℃|
|Relative humidity||less than 95% not condensed|
|Working Environment||Indoor/Outdoor (with rain-tent cover)|
|Input port||relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal|
|Communications port||RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet|
Sliding Gate Turnstiles
All-around Personal Safety Protection
The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power
Infrared and mechanical anti-clamping functions provide double protection.
The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the
machine and the pedestrian effectively.
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current
protective device to effectively avoid electric shocks.
Intelligent & Advanced Passageway Security Concept
The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that
threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms
through sound, light, etc. The turnstile can be also linked with other security systems.
Strong & Stable Control Core
High-quality DC brushless motor is configured and advanced servo control system is carried to truly achieve precise
control, stable performance and maintenance-free.
Lossless mechanism structure based on German technology is adopted to ensure long lifespan.
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer's requirement.
Stainless steel thickness of the cabinet: customized within 1.5~3.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Material of the gate: tempered glass / organic glass / polycarbonate, and color can be customized.
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
