| Brand Name: | RONA |
| Model Number: | RNCF H7088 / RNCF H7088S |
| MOQ: | 1 pair |
| Price: | negotiation |
| Delivery Time: | 7-15 working days |
| Payment Terms: | , T/T, L/C |

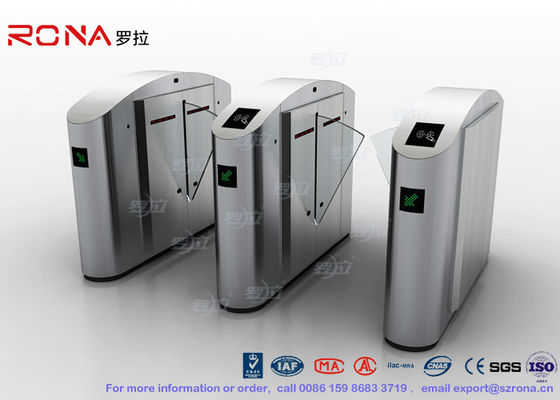

Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Feature & Advantages
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11 Unit can be controlled and administered by remote control
12 With function of self-examine and alarm, it is convenient for maintenance and use.
13 Being able to program running status by the small keyboard in the main board
14 Preventing pedestrians from being nipped and from hurt
15 Light and sound alarm funtion including the illegal in and the tail
16 Arms are automatically locked untill opening signal is received.
Technical parameters
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating Temperature | -15°C-60°C |
| 3 | Passing Speed | 50 persons/min(IC Card) |
| 4 | Access Width | 550mm |
| 5 | Running Life | 3 Million |
| 6 | Motor | 140W/24V |
| 7 | Motor Speed | 1600R/Min |
| 8 | Communication Distance | ≤1200M |
| 9 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 10 | Communication Connection | RS485 |
| 11 | Material | SUS304,thickness 2.0mm |
| 12 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional) |
| 13 | Applications | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area |
Application
Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
Video
|
|
