Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF6088 / RNCF6088S

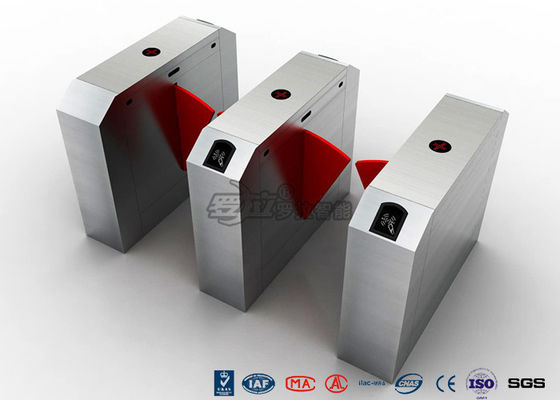

Dual Channel Automation Flap Barrier Gate Fast Lane Gate Access Control Systems
Flap barrier gates:
All flap barrier are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
IN GENERAL Installation
Feature & Advantages
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
(2) Only one person can pass with one card
(3) Collect the break-in information
(4) Installed in indoor or outdoor
(5) Well lightning and grounding
(6) Multi-working mode----Forbidden, Controlled or Free Passing optional
(7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, RFID Card and so on
(8) Card-swiping memory function
(9) Statistics collection automatically
(10) Manual release when meet the outside push
(11) NO/NC mode. In an emergency, the passage will be freely pass automatically
(12) Bi-directional passing or single way passing
(13) Self-inspection and alarm
(14) Can program the running status online by setting the built-in keys
(15) LED Counter, Direction indicator
(16) Infrared detector to sense the passing status.
Technical parameters
| Model | RNCF 6088 |
| Flap length | 245mm |
| Lane width | 550mm |
| Cabinet material | Cold rolled steel & aluminum alloy |
| Material of Flap Door | Acrylic plate |
| Housing of thickness | 2.0mm |
| Normal Life Span | 3 millions times |
| Communication Interface | Standard RS485 |
| Transit speed | 30-40 persons/min |
| Time for opening or closing | 0.5s |
| Starting time after power on | 3s |
| Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
| Transit speed | 25~32 persons/min |
| Working temperature | -10°C~50°C |
| Working environment | Indoor / Outdoor (Shelter) |
| Relative humidity | ≤95%, no condensation |
